Small concrete batching plant for sale in Indonesia manufactured by AIMIX is a small sized concrete plant designed to mix concrete. When compared with large size concrete batching plant, it has smaller floor coverage, compact structure, and much less cost. It is suitable for customers whose construction work belongs to small and medium size. It is a good choice for customers whose construction work is not very large, both practical and economical.

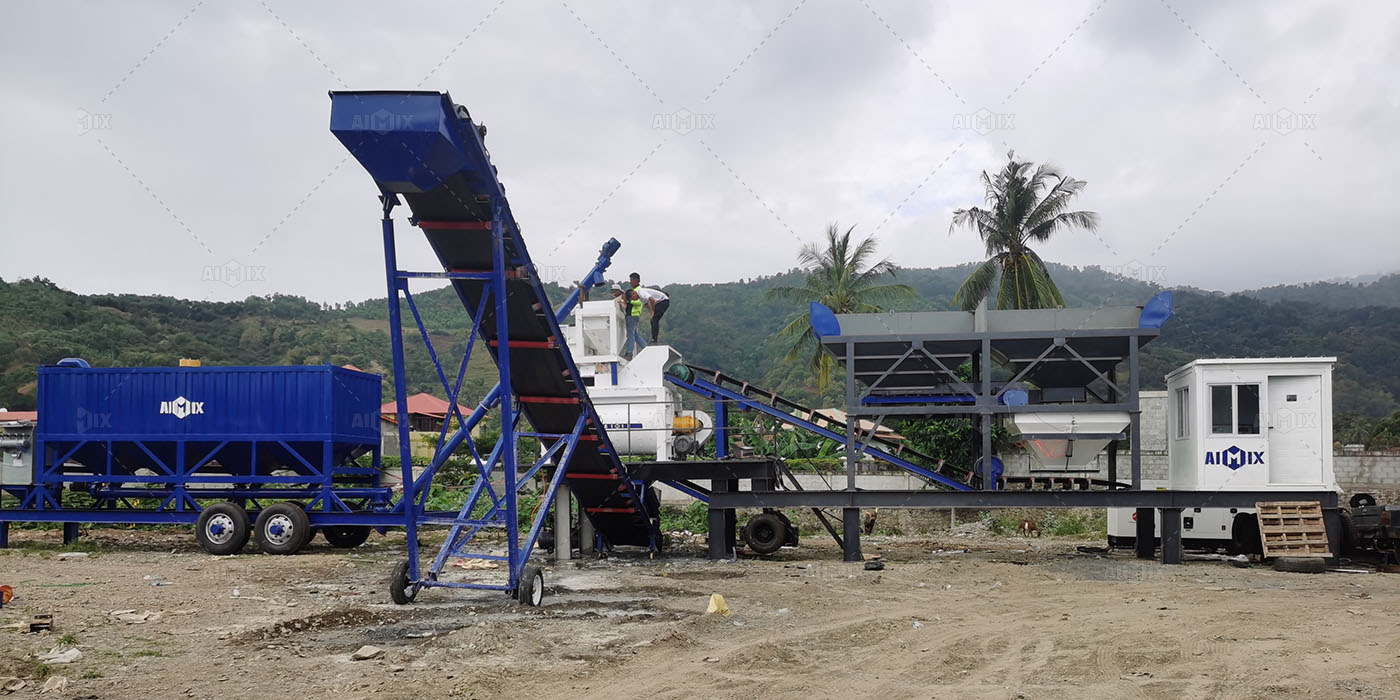

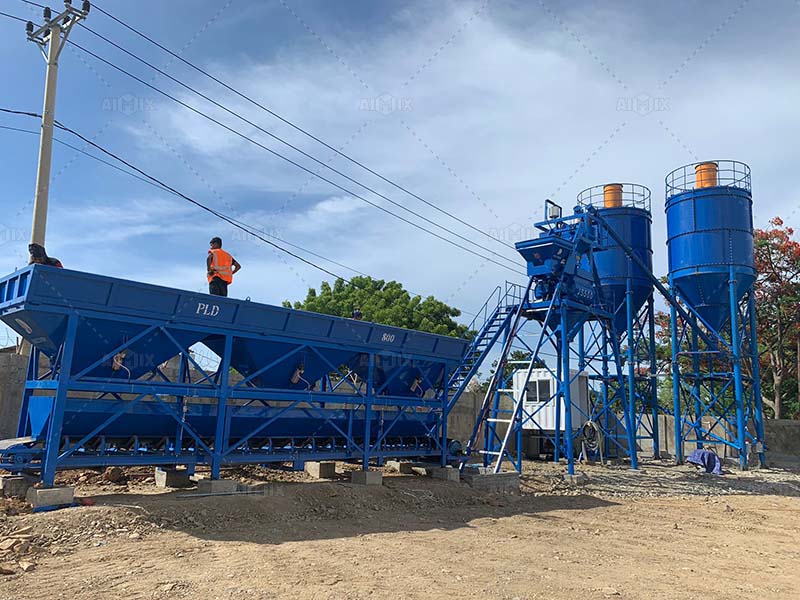

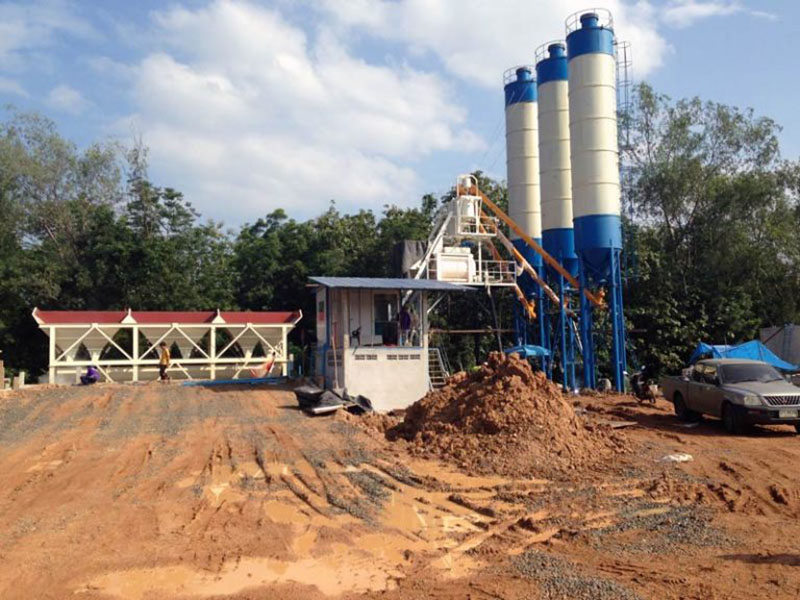

Aimix Small Batching Plant Working in Indonesia
As a professional construction machinery manufacturer and exporter, Aimix Group has exported our products to more than 60 countries all over the world. In recent years, we have expanded our business to overseas countries. We have already set 5 branch offices and overseas warehouses to serve customers better which include Indonesia. we have exported many sets of construction machinery to Indonesia. The following are some pictures of our batching plants working in Indonesia.
Aimix Small Concrete Batching Plant For Sale in Indonesia
Indonesia customers can get fast services from pre-sale to after-sale by contacting us. Also, Indonesian customers can get good quality small concrete batch plants with reasonable price from our sales in Indonesia. Aimix Group provides various types of small concrete batching plants for sale for customers to choose.
Aimix mainly provides two kinds of small concrete batch plants for sale: small stationary concrete batch plants and small portable concrete batch plants. Small stationary concrete batch plant main includes AJ35, AJ50, AJ60 and AJ75 etc.
Among these small stationary concrete batch plants, AJ35 and AJ50 belong to skip hoist type concrete batching plant (see our AJ50 skip hoist batching plant video here), which adopts a skip hopper to transport the raw aggregates. AJ60 belongs to a belt conveyor type concrete batching plant, which adopts a belt conveyor to transport the raw aggregates.

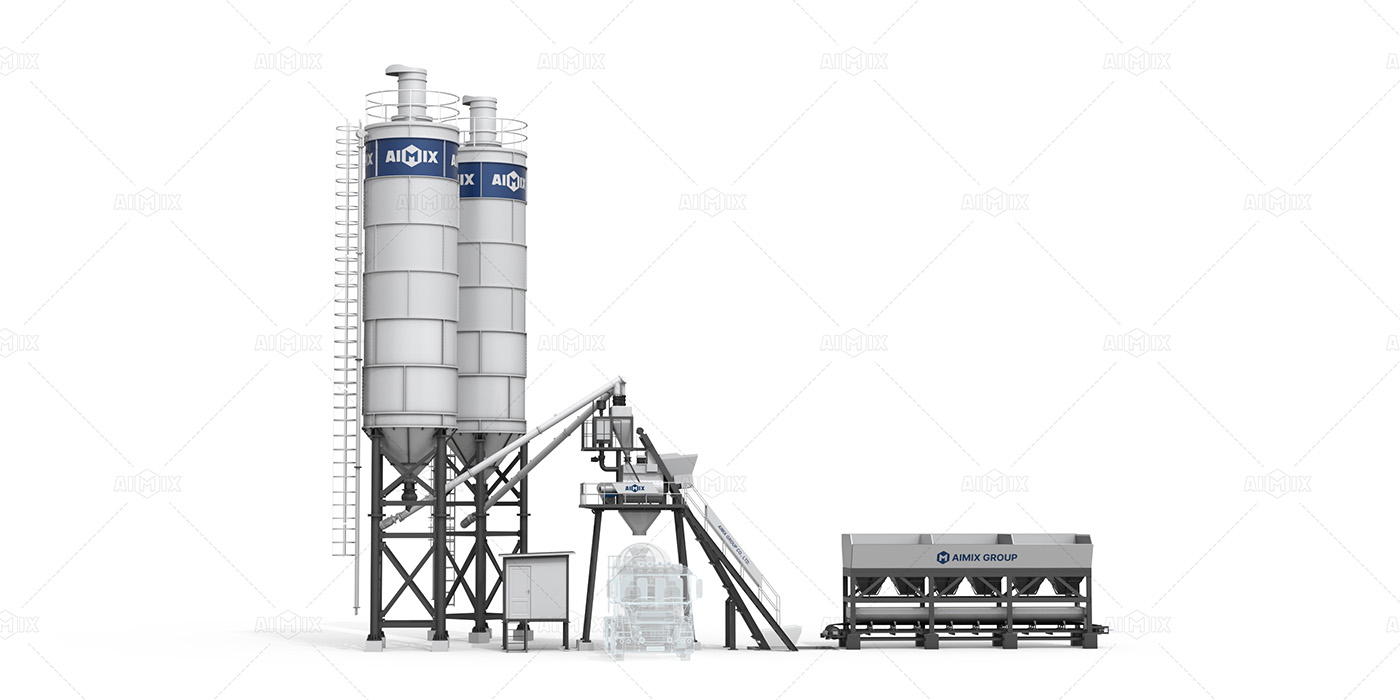

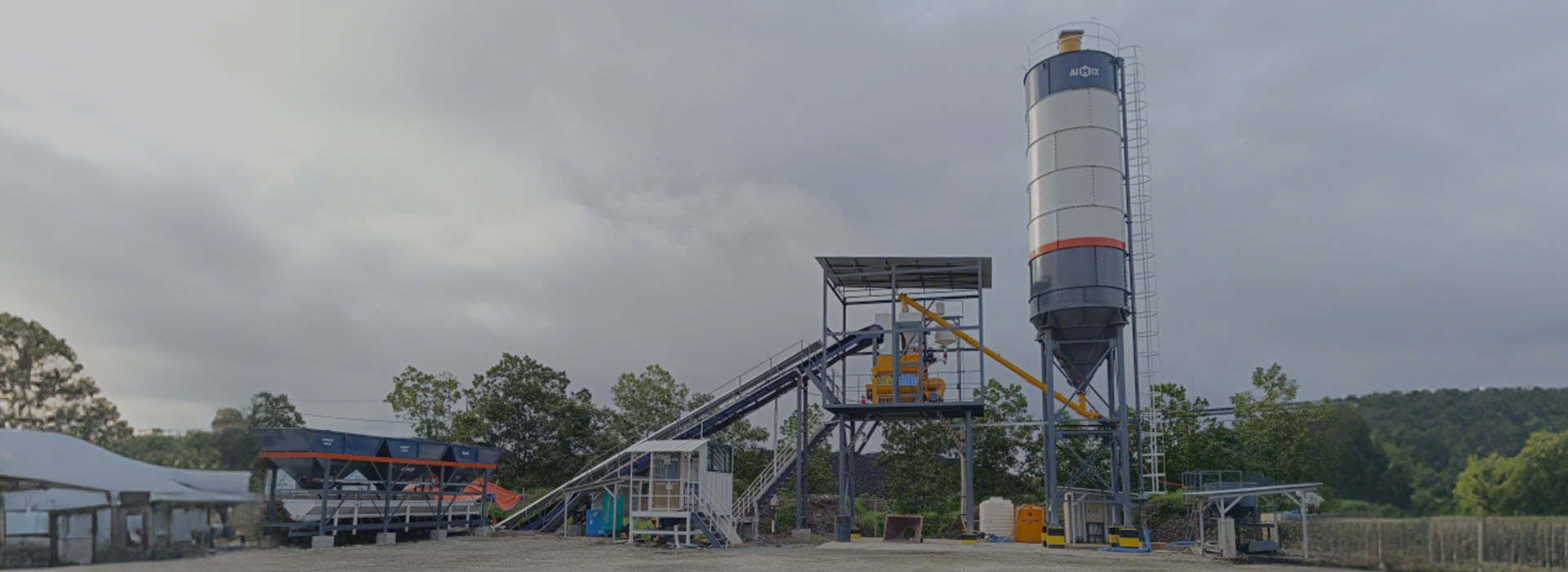

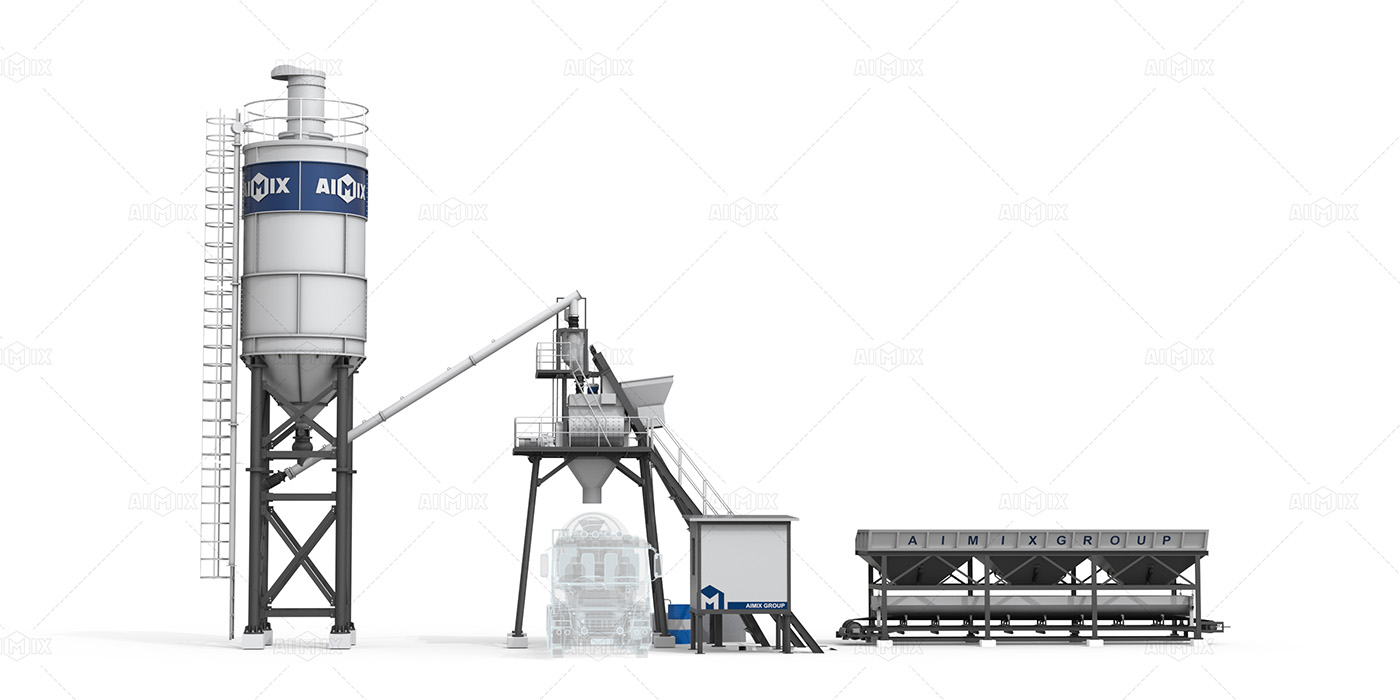

Small Stationary Batching Plant in Indonesia

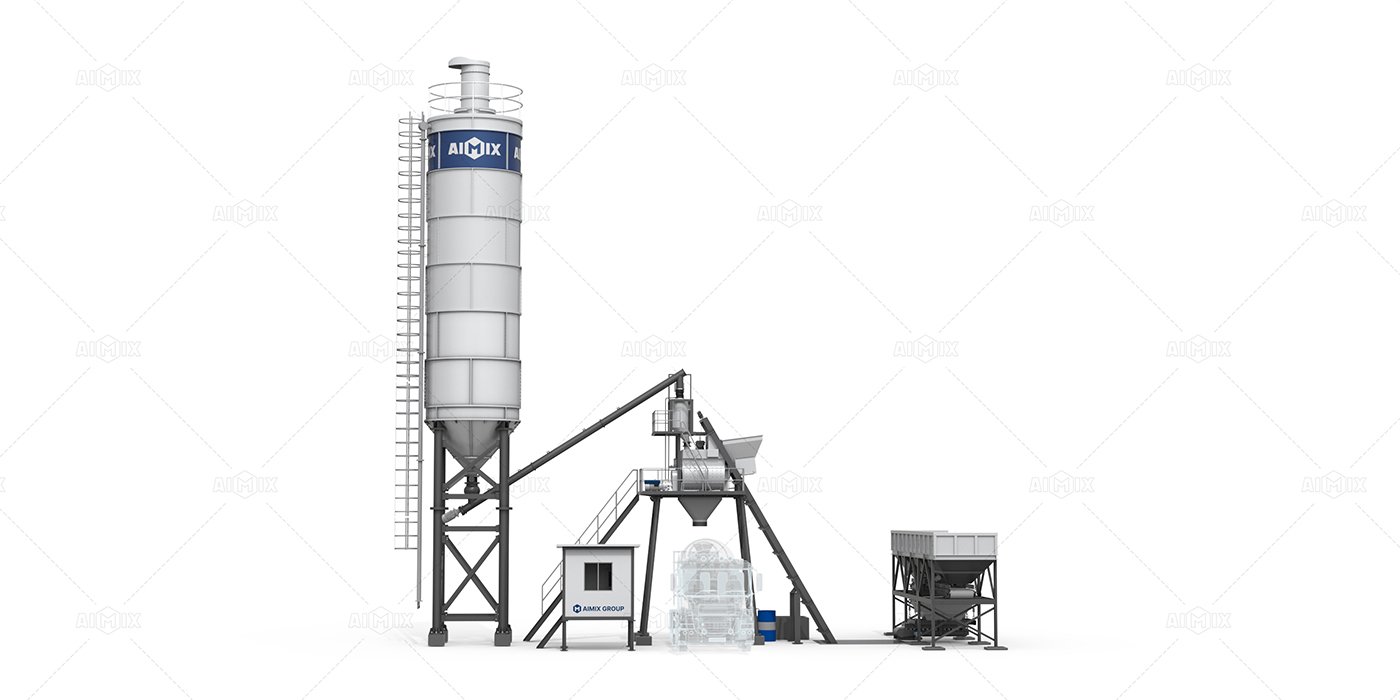

AJ-35 Small concrete batching plant for saleCapacity: 35(m3/h)
- Mixer Discharging Volume (L)750
- Mixer Feeding Volume (L): 1200
- Mixer Motor Power (kW): 30
- Discharging Height (m): 4.1
- Aggregate Material Quantity (m3): 5×3
- Max. Aggregate Size (mm): 80/60

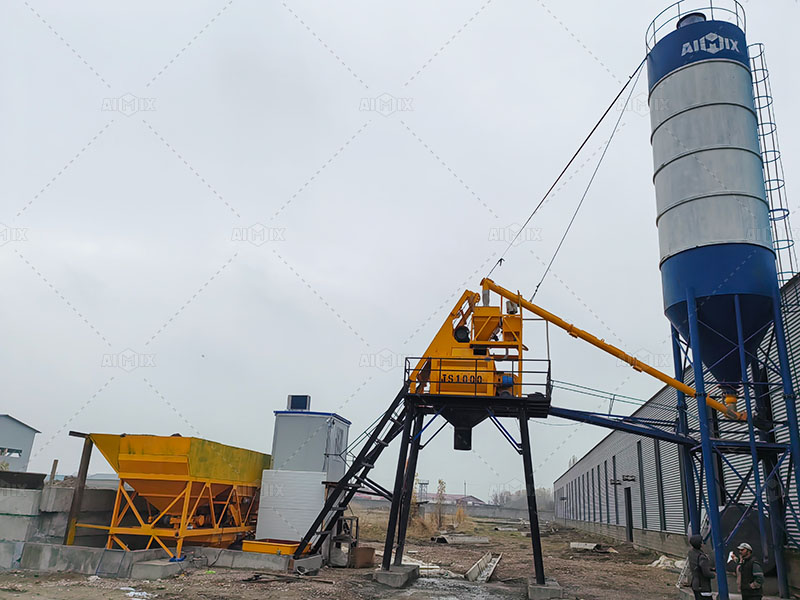

AJ-50 Small concrete batching plant for saleCapacity: 50(m3/h)
- Theoretical Productivity (m³/h):50
- Mixer Model (Mixer Output L) (L):JS1000
- Max.Aggregate Size (mm):Φ60
- Mixer Motor Power (kW):2×18.5
- Discharging Height (m):4.1
- Overall Weight (ton):≈23
AJ-60 Small batching plant IndonesiaCapacity: 60(m3/h)
- Mixer Discharging Volume (L):1000
- Mixer Feeding Volume (L):1600
- Mixer Motor Power (kW):18.5×2
- Discharging Height (m):4.1
- Aggregate Material Quantity (m3):7×4
- Cycle Period (s):60
- Max. Aggregate Size (mm):80/60
- Cement Silo (t) (optional):2×100
AJ-75 Small batching plant IndonesiaCapacity: 75(m3/h)
- Theoretical Productivity (m³/h):75
- Mixer Model (Mixer Output L) (L):JS1500
- Max.Aggregate Size (mm):Φ80
- Mixer Motor Power (kW):2×30
- Discharging Height (m):4.1
- Overall Weight (ton):≈30

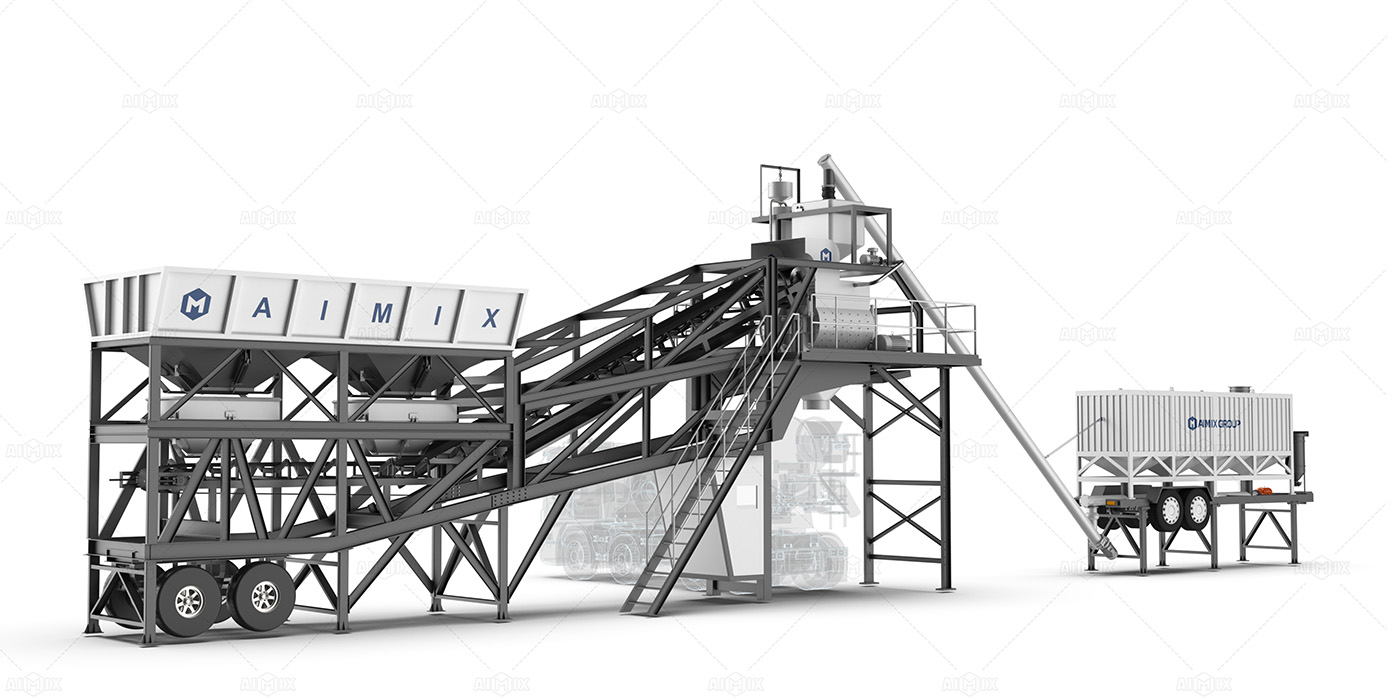

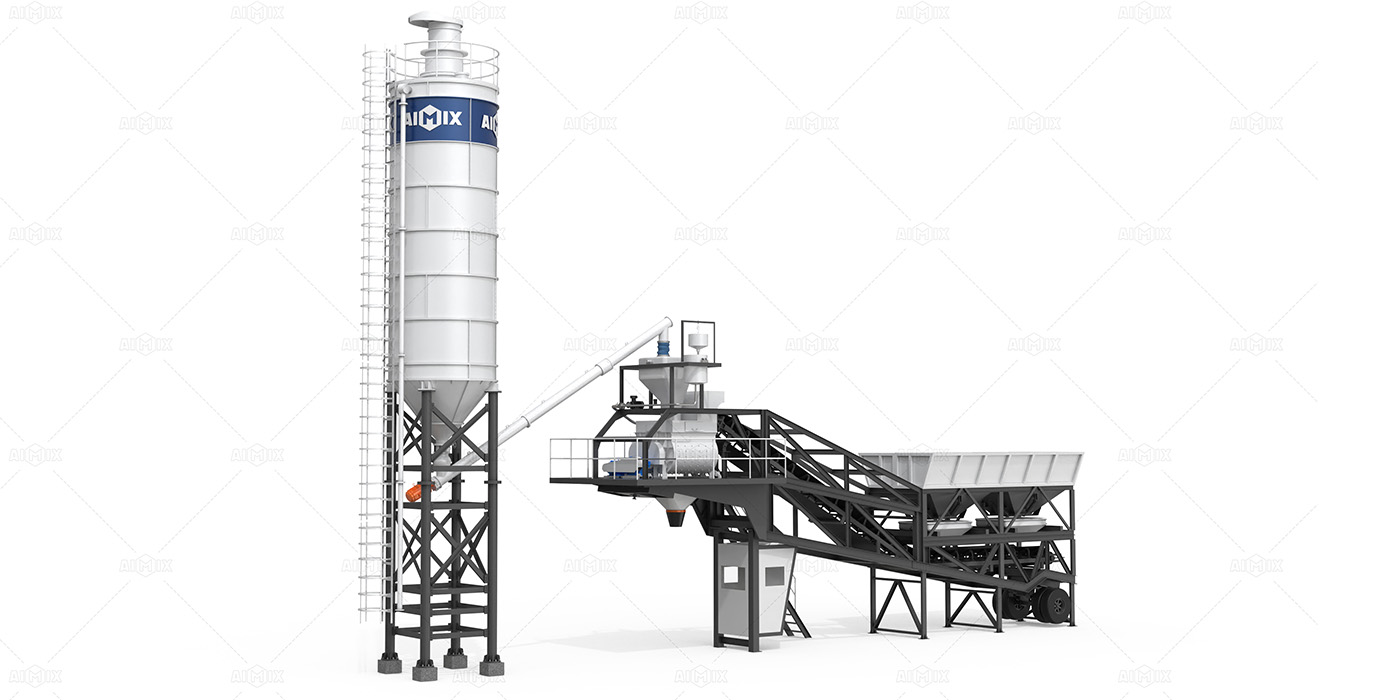

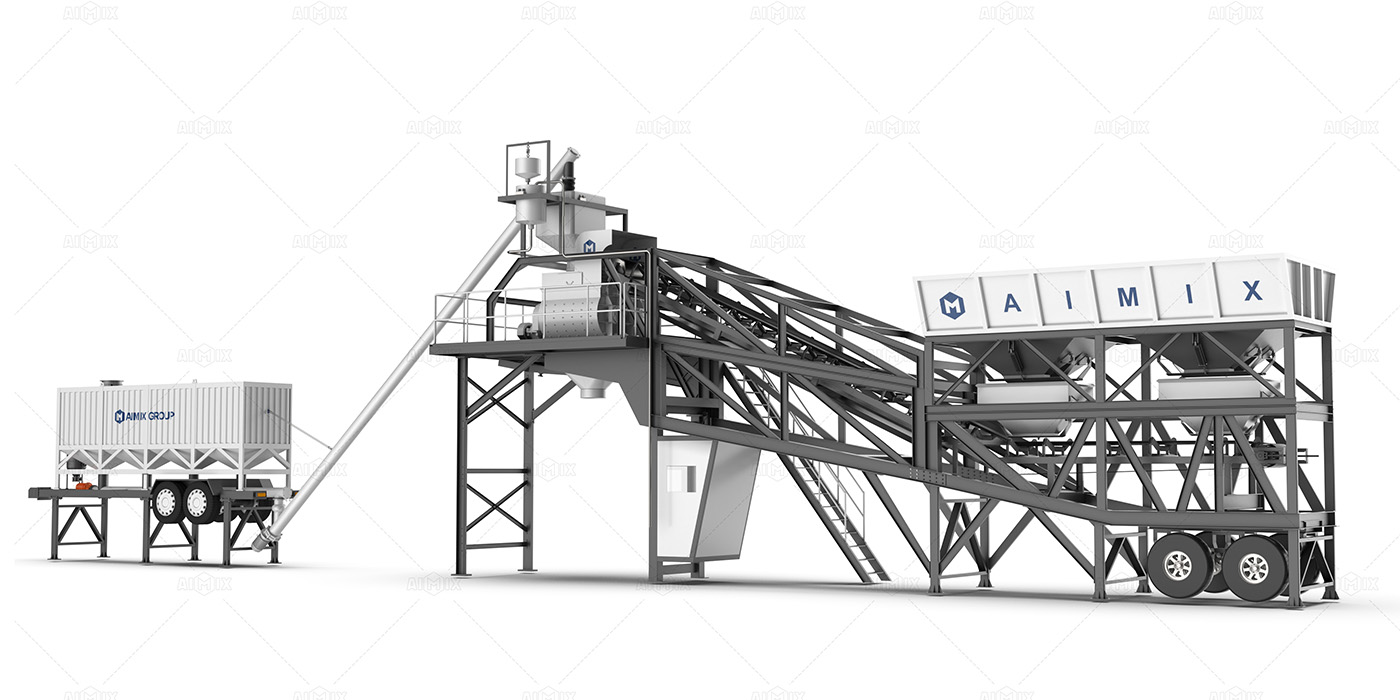

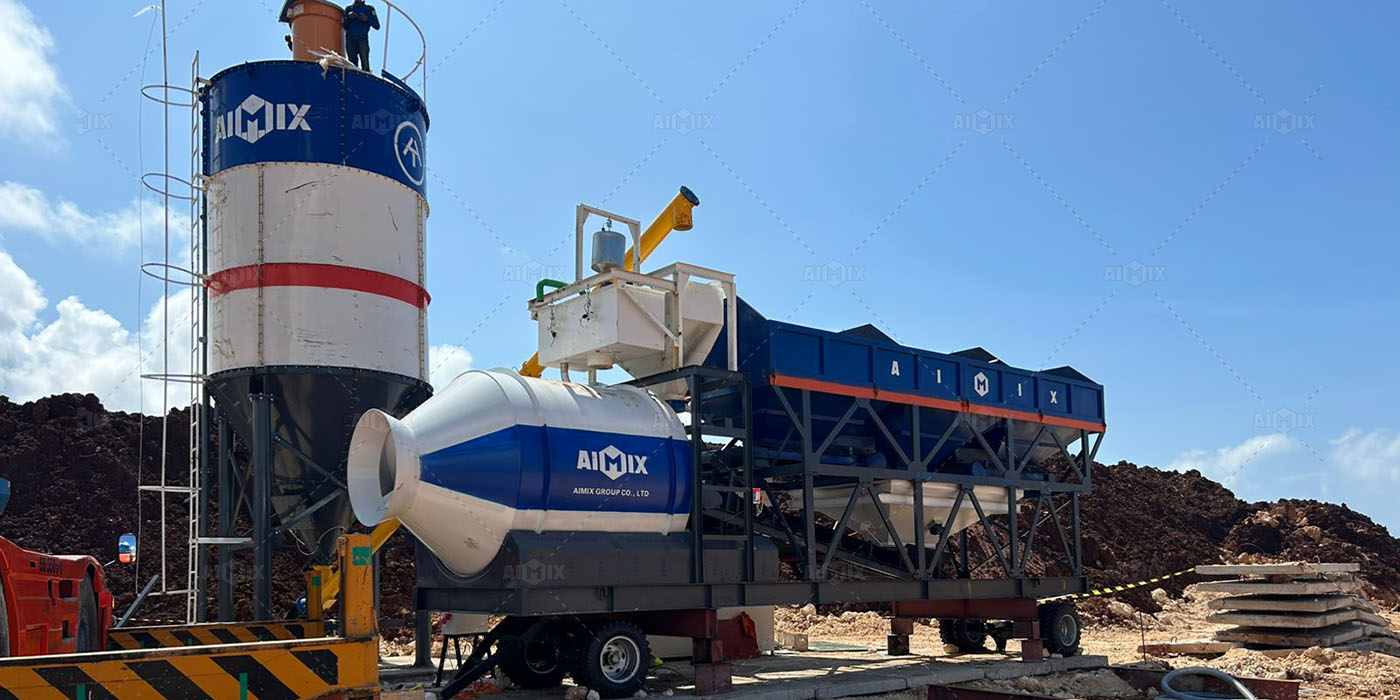

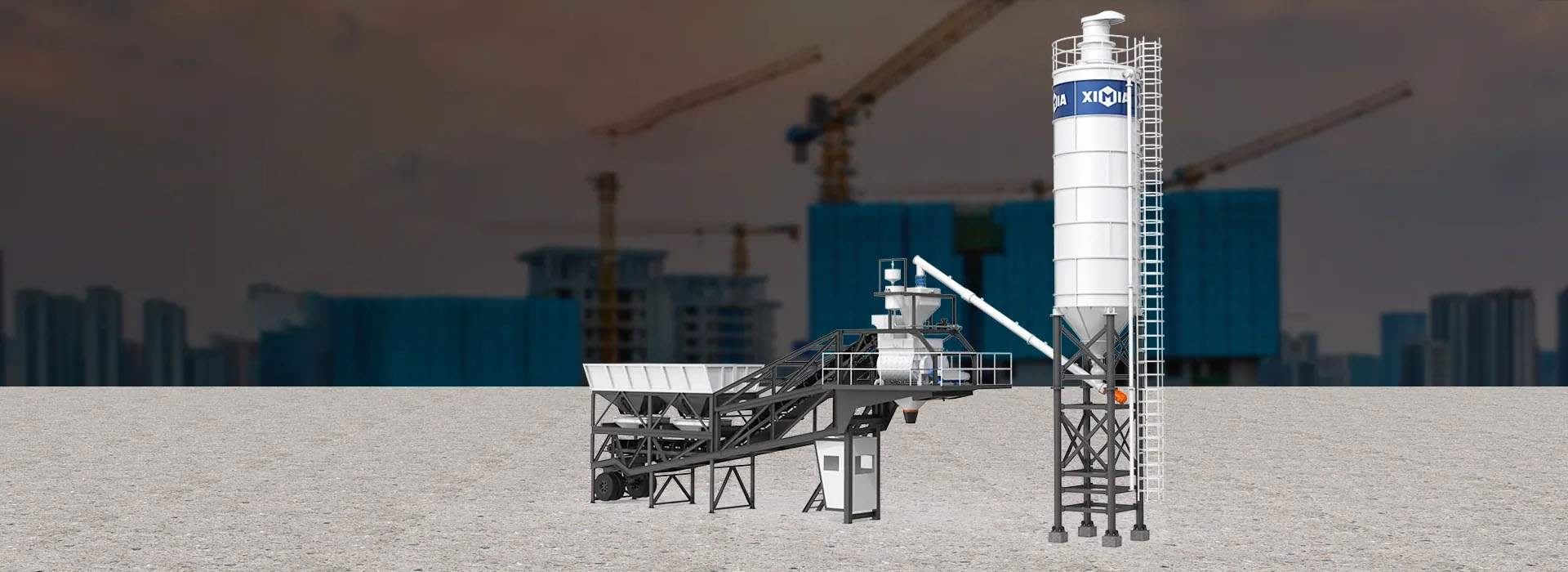

Small Mobile Batching Plant
Small mobile concrete batch plant mainly includes AJY35, AJY50. They all adopt belt conveyors to transport the raw aggregates.

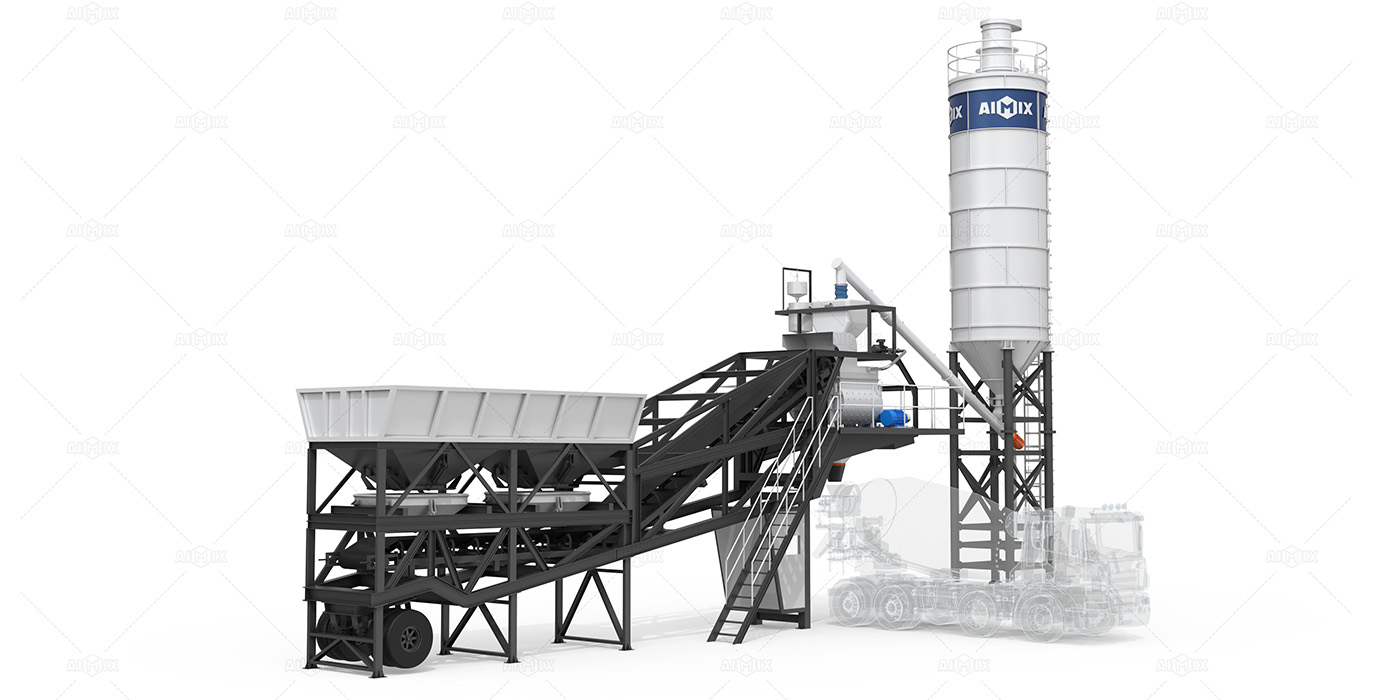

AJY35 Small batching plant IndonesiaCapacity: 35(m3/h)
- Theoretical Productivity (m³/h):35
- Mixer Discharging Volume (L):750
- Mixer Power (kW):30
- Rated Input Volume(Model of Batching Machine L):1200
- Max.Aggregate Size (mm):Φ60
- Standard Aggregate Bin Capacity (m³):2×5
- Max. Discharging Height (m):3.8
- Overall Weight (ton):≈22
AJY50 Small batching plant IndonesiaCapacity: 50(m3/h)
- Theoretical Productivity (m³/h):50
- Mixer Discharging Volume (L):1000
- Mixer Power (kW):2×18.5
- Rated Input Volume(Model of Batching Machine L):1600
- Max.Aggregate Size (mm):Φ60
- Standard Aggregate Bin Capacity (m³):1×100
- Max. Discharging Height (m):4.1
- Overall Weight (ton):≈26
How Much is a Small Concrete Batching Plant in Indonesia?
Small concrete batching plants are very popular in the Indonesia market, so how much does a complete set of small concrete batch plant cost?
The price of a complete set of small concrete plant for sale depends on the model. AIMIX concrete batching plants mainly include AJ25, AJ35, AJ50, AJ60, etc. The prices of different models of small concrete mixing plant vary greatly, generally, it is about several tens of thousands of dollars. Also, small batching plant price is influenced by the concrete mixer adopted in the batching plant. For example, AIMIX small mobile batching plant include drum mixer type, pan mixer type, twin shaft mixer type, the prices of them are different even the small concrete batching plant capacity is the same.
Many customers are using small batching plants. The small concrete plants not only have high working efficiency, but also have relatively low investment cost. If you want to invest in a concrete batching plant in rural areas, it is better to choose a small batching plant. The profit of the small concrete batch plant can also be well protected!
How to Choose a Small Concrete Batching Plant?
Compared with large-scale batching plants, small-scale batching plants require less capital investment, so how to choose a suitable small batching plant and quickly realize profitability?
First of all, we need to figure out how much your concrete production amount is. The concrete batching plant is selected according to the scale of production, such as annual output. According to the annual output, the productivity of batching plant is generally not less than how many cubic meters per hour, and then the appropriate model is selected. That is to say, you must first clarify your concrete demand, and then choose the appropriate model.
If the production site area is limited, a small batching plant can be selected at this time. You can communicate with our sales staff and engineers, and they will give reasonable suggestions for site planning and concrete station model selection.
How to Select Site for Small Concrete Batching Plants:
- The location of small concrete batch plant should consider convenient water supply, electricity supply, and transportation.
- the concrete mixing plant model determines its output, we must first determine the required capacity, decide the model of the concrete plant, and then choose the right size of the site.
- The raw material supply should be convenient. The production of concrete batching plants requires a large number of raw materials and there must be a stable supply of reliable quality raw materials.
How to Install Aimix Small Batching Plant for Sale in Indonesia:
Main Components Of Aimix Small Concrete Batching Plant For Sale
Small concrete batch plant is composed of material storage system, material weighing system, material conveying system, the concrete mixing system, control system etc. five components, and other ancillary facilities.
- The material storage system mainly includes powder material storage system – cement silo, aggregate storage system – concrete batching machine.
- Material weighing system mainly includes aggregate weighing, powder weighing, water, and additive weighing. Each of them has a dedicated weigher to accomplish the material weighing.
- Material conveying system mainly includes the aggregate, powder, liquid (water and additive) transport. Aggregate conveying mainly adopts two ways: skip hopper conveying and belt conveying; Powder conveying mainly adopt screw conveyors; Liquid transport mainly refers to water and liquid admixtures which are separately delivered by a water pump.
- The mixing system mainly adopts two kinds of concrete mixers: JS series twin shaft concrete mixer and planetary concrete mixer.
- The control system mainly adopts two methods: automatic control system usually adopt PLC + computer control or industrial personal computer control while semi-automatic control system adopt a control panel.
Advantages of Invest In A Small Concrete Batching Plant for Sale
- The configuration of a small concrete batching plant is basically similar with the large size concrete batching plant equipment. The difference lies in the output of the concrete mixer and the number of cement silos etc. Small concrete batch plant adopts the JS series twin-shaft concrete mixer with high precision and good mixing quality. Its performance is reliable.
- The small concrete batching plant Aimix provides has a compact structure and does not occupy too much space. The location requirements for the plant are relatively low, and it is convenient and simple in terms of equipment relocation.
- Small concrete batch plant for sale has low investment cost and low labor consumption, relatively low maintenance cost, and quick return. It is suitable for self-employed users to invest.
AIMIX Small Concrete Batching Plant for Sale in Modular Type
The modular concrete batching plant integrates the modular concept in the design of the batching plant, which can not only reduce the floor cover space, but also facilitate the disassembly and assembly. It helps to reduce costs and increase working efficiency. AIMIX AJ60 small batching plant can be made into modular type batching plant.Customers can choose it according to the actual demand.
FAQ
- Q: Do you have a factory or just a trading company?
A: AIMIX is a small mini concrete batching plant manufacturer. We have our own factory and we welcome customers to visit our factory. - Q: Do you supply training and after-sale service?
A: Yes, we can supply on-site installation and training service. We also have a professional after-sale service team that can solve customers’ worries in time. - Q: Do you have CE certificate for your concrete batching plant?
A: Yes, we have. Batching plants are our patent products, certificated by CE. - Q: How about the concrete batching plant production period?
A: Generally, we need about 20 working days to produce a batching plant. For some hot models, we have products in stock. - Q: Do you supply spare parts for the batching plant?
A: Yes. We offer the original, authentic, quality spare parts for equipment maintenance. - Q: If the engineer can’t come, how can we install it? Are there any fees?
A: Our engineers can provide online instructions for installation at any time, and it’s free. - Q: What Is the Capacity of a Small Batching Plant?
In general, the capacity of a small batching plant can vary from 10 cubic metres per hour to 75 cubic metres per hour.

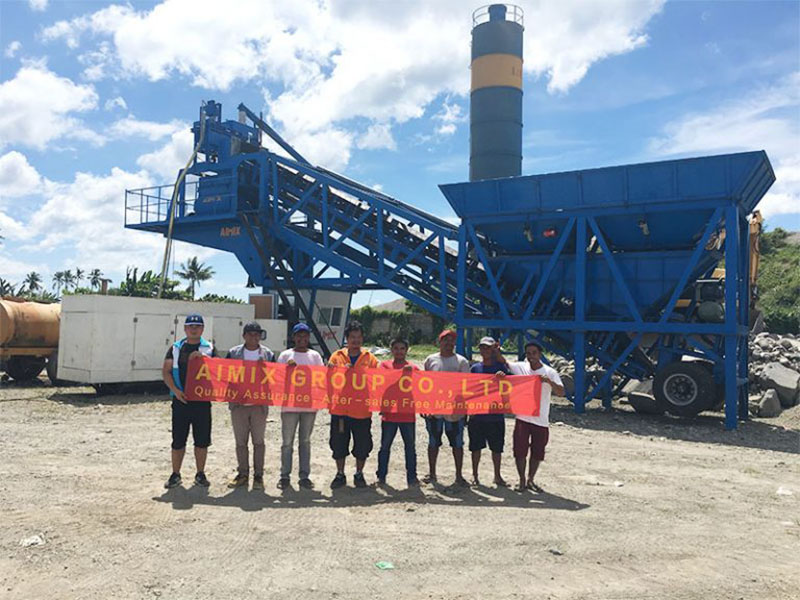

AIMIX Service team in Indonesia
AIMIX is an experienced construction machinery manufacturer and exporter, our products such as batching plants, asphalt mixing plants, dry mortar plants, self-loading concrete mixers, concrete mixer pumps etc. have been sold to more than 100 countries all over the world. Our batching plants have been exported to many islands in Indonesia, such as Sulawesi, Lampung, East Java, Batam, Ambon etc.
- Professional engineer team, guarantee fast response and professional proposal.
- Branch office and team in Indonesia, quality and timely service assured.
- Local custom clearance partner in Major cities Surabaya and Jakarta and can solve custom clearance issues for customers who don’t have import experience.
- Spare parts are available in Indonesia.
- Indonesia’s local Installation team, with more than 10 years of installation experience, can guarantee timely installation and maintenance, even in Pandemic times.
Want to invest in a small concrete batching plant for sale in Indonesia and not sure which one to choose? Please don’t hesitate to contact us via email or leave a message in the form below. Any question is welcomed, our sales team in Indonesia will give you professional advice in 24 hours.
