Maximum Capacity: 30m³/h | 40m³/h.
Type: Diesel | Electric Engine.
Features: Efficient | Versatile | Compact
Concrete mixer with pump is a versatile machine that combines concrete mixing and pumping in one unit. This makes it perfect for construction projects in Indonesia. Besides, its high efficiency and multifunctionality make it a popular choice among builders in Indonesia. Let’s learn more about the concrete mixer and pumping machine together in the following.
Hot Selling
Maximum theoretical transport volume: 30m3/h, 40m3/h
Engine: Electric/Diesel Type
Distribution valve type: S valve
Maximum theoretical vertical distance: 120m
Maximum theoretical horizontal distance: 300-600 meters
Concrete Mixer Pump Cases in Indonesia
ABJZ40C Concrete Mixer Pump for Bridge Construction
Delivery time: August 2024
Location: in Kupang, Indonesia
Application: 40 m³/h diesel pump mix concrete was applied in small bridge construction for mixing and pumping concrete.
ABJZ40C Concrete Mixer Pump for Road Construction
Delivery time: September 2024
Location: in Dumai, Indonesia
Application: 40 m³/h diesel concrete mixer pump was applied to provide precise concrete for rural road construction in Indonesia.
ABJZ40C Concrete Mixer Pump for House Building
Delivery time: June 2024
Location: in Kalimatan
Application: 40 m³/h diesel cement mixer with pump was applied to help the customer build the new rural house in Indonesia.
ABJZ40C Diesel Concrete Mixer Pump for Seaside Construction
Delivery time: March 2023
Location: in Jakarta, Indonesia
Application: 40 m³/h diesel concrete pump and mixer was applied to build some facilities around the seaside in Indonesia.
What Are the Different Types of Concrete Mixer Pump?
Concrete mixer pump is an essential equipment in the construction industry. AIMIX offers two main types of concrete mixer pumps: diesel and electric. Choose the right model to enhance efficiency, reduce costs, and ensure reliable performance for your specific construction needs. Here, we will introduce the main types of concrete mixer with pumps available, focusing on their power sources and key features.
Diesel Engine Type
ABJZ30C Diesel Concrete Mixer Pump Capacity: 30(m3/h)
- Max. Theoretical Conveying Capacity: 30m3/h
- Distribution valve type: S Valve
- Diesel engine model: Weichai
- Max. Theoretical Vertical Conveying Distance: 120m
- Max. Theoretical Horizontal Conveying Distance: 300m
- Max. Aggregate Diameter: Slick/scree:10mm/20mm

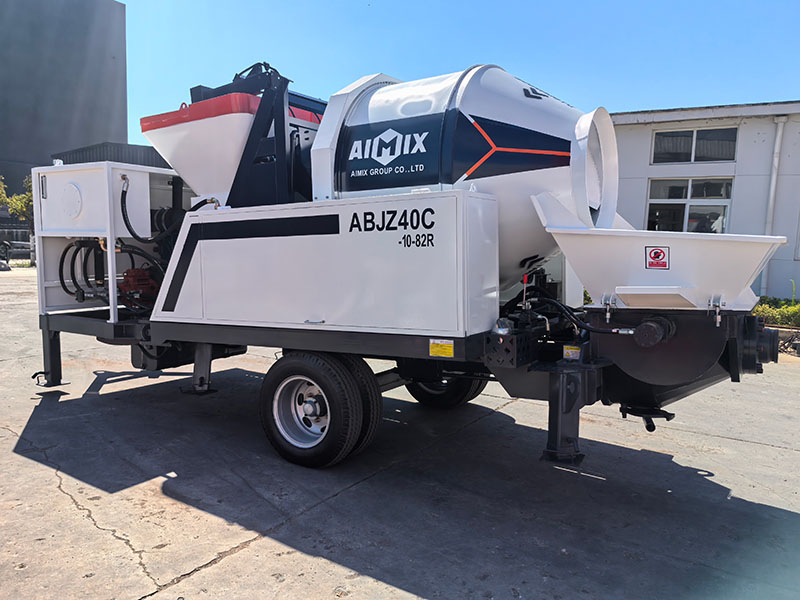

ABJZ40C Diesel Mixer Concrete Pump Capacity: 40(m3/h)
- Max. Theoretical Conveying Capacity: 40m3/h
- Distribution valve type: S Valve
- Diesel engine model: Weichai
- Max. Theoretical Vertical Conveying Distance: 120m
- Max. Theoretical Horizontal Conveying Distance: 500m
- Max. Aggregate Diameter: Slick/scree:40/50
Key Features
- Power Source: Diesel engine
- Versatility: Ideal for areas with limited or no electricity supply
- Robust Performance: Designed to handle tough construction environments
Advantages
- Independence from Electrical Supply: Operate in remote and rural areas
- High Efficiency: Quick and efficient concrete mixing and pumping
- Durable Design: Long-lasting and reliable for various construction tasks
Ideal Applications
- Rural House Construction: Perfect for building homes in areas without stable electricity
- Road Paving: Efficiently pave roads in remote locations
- General Construction: Suitable for diverse construction projects
If you are not sure which type to use, the easiest way is to ask our professional sales to get some advice.
Electric Motor Type
ABJZ30D Electric Concrete Mixer Pump Capacity: 30(m3/h)
- Max. Theoretical Conveying Capacity: 30m3/h
- Distribution valve type: S Valve
- Mixer rated feed capacity: 0.56L
- Max.concrete pumping pressure(H./L.): 10
- Hopper capacity: 400L
- Electrical engineering power: Slick/scree:37
ABJZ40D Electric Concrete Mixer Pump Capacity: 40(m3/h)
- Max. Theoretical Conveying Capacity: 40m3/h
- Distribution valve type: S Valve
- Mixer rated feed capacity: 0.56L
- Max.concrete pumping pressure(H./L.): 10
- Hopper capacity: 400L
- Electrical engineering power: Slick/scree:45
Key Features
- Power Source: Electric motor
- Efficiency: High-performance mixing and pumping with electric power
- Eco-Friendly: Lower emissions and noise compared to diesel models
- Consistency: Reliable operation with a stable electricity supply
Advantages
- Environmentally Friendly: Reduced emissions and quieter operation
- Cost-Effective: Lower operational costs due to electricity
- Consistent Performance: Stable and reliable for continuous use
Ideal Applications
- Urban Construction: Perfect for city projects with reliable electricity
- Commercial Projects: Efficiently handle large-scale construction tasks
- Environmentally Conscious Sites: Compliance with strict environmental regulations
Concrete Mixer with Pump Technical Parameters
Understanding the technical parameters of concrete mixer pumps for sale is crucial for selecting the right model for your construction needs. Aimix offers both diesel and electric concrete pump with mixers, each with specific features and advantages. Below are the technical parameters for these models to help you make an informed decision.
| Model | Units | ABJZ30C-8-66R | ABJZ40C-10-82R |
|---|---|---|---|
| Max. theo. concrete output | m3/h | 30 | 40 |
| Max. concrete pumping pressure(H./L.) | Mpa | 8 | 10 |
| Distribution Valve Type | S | S | |
| Concrete Cylinder Diameter×Stroke | mm | Φ140/1000 | Φ180/1000 |
| Hopper Capacity×Feeding Height | L×mm | 400×1200 | 400×1200 |
| Outlet Diameter | mm | Φ100 | Φ150 |
| Electrical Engineering Power | KW | 66 | 82 |
| Rotate Speed | r/min | 1800 | 2200 |
| Circuit Type | Open Circuit | Open Circuit | |
| Pumping System Pressure | Mpa | 28 | 32 |
| Mixing System Pressure | Mpa | 10 | 10 |
| Max Mixing Spped | r/min | 20 | 20 |
| Capacity of Oil Tank | L | 350 | 350 |
| The biggest transportation is away from vertically(/Level) | m | 120/400 | 150/600 |
| Max. Aggregate Diameter | mm | Φ100 | Φ125 |
| Dimensions: length×width×height | mm | 6000×2300×3150 | 6000×2350×3150 |
| Total Weight | Kg | 5500 | 6000 |
| Items | Units | ABJZ30D-10-37 | ABJZ40D-10-45 | ABJS40D-JS500 | ABJS40D-JS750 |
|---|---|---|---|---|---|
| Max. theo. concrete output(L./H) | M3/h | 30 | 40 | 40 | 40 |
| Mixer rated feed capacity | m3 | 0.56 | 0.56 | 0.56 | 0.56 |
| Mixer rated discharge capacity | m3 | 0.35 | 0.45 | 0.5 | 0.75 |
| Max.concrete pumping pressure(H./L.) | MPa | 10 | 10 | 8 | 8 |
| Distribution valve type | S Valve | S Valve | S Valve | S Valve | |
| Concrete cylinder diameter×stroke | mm | Φ140×1000 | Φ180×1000 | Φ200×1000 | Φ200×1000 |
| Hopper capacity | L | 400 | 400 | 400 | 400 |
| Outlet diameter | mm | Φ150 | Φ150 | Φ180 | Φ180 |
| Winding motor power | KW | 5.5 | 5.5 | 5.5 | 7.5 |
| Stir the motorPower | KW | 4.5 | 4.5 | 18.5 | 30 |
| Water pump motor powe | KW | 0.55 | 0.55 | 0.75 | 0.75 |
| Electrical engineering power | KW | 37 | 45 | 45 | 45 |
| Rotate speed | r/min | 1480 | 1480 | 1480 | 1480 |
| Circuit type | Open circuit | Open circuit | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 26 | 26 | 28 | 28 |
| Mixing system pressure | MPa | 6-8 | 6-8 | 6-8 | 6-8 |
| Capacity of oil tank | L | 260 | 370 | 370 | 370 |
| Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/300 | 120/500 | 120/500 | 120/500 |
| Max. aggregate diameter | mm | Slick/scree:10/20 | Slick/scree:40/50 | Slick/scree:40/50 | Slick/scree:40/50 |
| Inside diameter of delivering pipe | mm | Φ100 | Φ125 | Φ125 | Φ125 |
| Dimensions：length×width×height | mm | 4500x1750x1600 | 4200x2300x3150 | 4200x2300x3150 | 6000x2300x3150 |
| Total weight | kg | 3000 | 4500 | 4500 | 5000 |
Concrete Mixer With Pump Price List
When investing in a concrete mixer pump, understanding the price range for different models can help you make an informed decision. AIMIX concrete mixer pump price ranges from $18,000 to $40,000. Below is a detailed price list for Aimix’s diesel and electric concrete mixer pumps. Let’s see what the concrete pump price is in the following.
| Model | Price(USD) | |
|---|---|---|
| Diesel Concrete Mixer Pump | ABJZ30C-ABJZ40C | $20,000 to $40,000 |
| Electric Concrete Mixer Pump | ABJZ30D-ABJZ40D | $18,000 to $30,000 |
Aimix offers a range of concrete mixer pumps for sale to suit different construction needs and budgets. Whether you opt for a diesel or electric model, our cement mixer with pumps are designed to enhance efficiency and reliability on your construction site. Contact us today to find the best solution for your project and get a detailed quote tailored to your requirements. Get the harga concrete mixer pump from us now!
Concrete Mixer Pump for Concrete Mixing and Pumping Solutions
At AIMIX, we offer comprehensive concrete mixing and pumping solutions tailored for the Indonesian market. Our range of high-quality equipment, including concrete mix pumping machine, wheel loader, and batching machine, ensures that your construction projects are efficient and effective. Here’s how our solutions can help you achieve fine operations:
— — Concrete Mixer Pump + Batching Machine
— — Concrete Mixer Pump + Wheel Loader
— — Mixer Pump Concrete+ Batching Machine + Wheel Loader
Some Customer’s Feedback
This is a feedback video taken by one of our Indonesia customer. It’s the construction scene of our ABJZ40C concrete mixture machine with pump. It works very well and our customer is very satisfied with it.
This pump mixer concrete can work stably, with characteristics of high pumping pressure and working efficiency, it is very popular in our areas.
Diesel concrete mixer pumps have wide application in areas lacking or not convenient to access electricity. It can be applied to more construction sites than electric motor concrete mixer pumps.
Concrete Mixer Pumps Have Been Exported To Many Countries
Aimix concrete mixing and pumping machines have been exported to countries all over the world such as Indonesia, the Philippines, Dominica, Algeria, Argentina, Bangladesh, Botswana, Congo, Daemonic Republic, East Timor, Ecuador, Ethiopia, Fiji, Kenya, Malaysia, Pakistan, Philippines, Qatar, Russia, Senegal, Sri Lanka, Thailand, Trinidad and Tobago, Uganda, Uzbekistan, Vietnam, Saudi Arabia, Australia, etc. The following are some pictures of our concrete pump exported to all over the world. Customers speak highly of our portable concrete mixer with concrete pump and our services.
How to Choose A Suitable Concrete Mixer Pump in Indonesia?
Choosing the right concrete mixer pump for your project in Indonesia is crucial. With many options available, focus on key factors that meet your needs and suit local conditions. This guide will help you make an informed decision, ensuring you select a concrete pump with mixer for sale that offers excellent performance, durability, and value. See the key considerations when choosing a concrete pump with mixer machine.
Durability: Opt for a concrete mixture pump made from robust materials that can withstand Indonesia’s varying climate conditions.
After-Sales Support: Look for manufacturers or suppliers that offer reliable after-sales service, including maintenance and spare parts availability.
By focusing on these factors, you can choose a mini concrete pump that meets your specific needs and ensures efficient operation for your construction projects in Indonesia.
How Does The Concrete Mixer With Pump Work?
Understanding how a concrete mixture pump operates can simplify its usage. Continue to learn more about how concrete pump works in the following.
01Feeding Process
Loading: Use a wheel loader or excavator to load aggregate materials into the lifting hopper.
Transfer: The hopper lifts the materials to the inlet port and unloads them into the mixer drum.
02Water Supply Process
Adding Water: Simultaneously add water to the mixer drum.
03Mixing Process
Mixing: Activate the mixing function. The drum will whirl forward to mix the concrete mixture.
Discharging: The drum will whirl backward to discharge the concrete mixture.
04Filtering Process
Filtering: The mixed concrete is discharged into the filtering hopper. Concrete with particles larger than 50mm will be screened out.
05Pumping Process
Pumping: The hydraulic pumping system then pumps the concrete to the desired location.
Factors Influence The Concrete Mixer with Pump Price
When it comes to purchasing a concrete pump and mixer, understanding the factors that influence its price is crucial for making an informed decision. Here’s a detailed look at those factors:
Price of Raw Materials
Steel Prices: Steel is a primary component in the construction of concrete mixer and pump. Fluctuations in steel prices can significantly impact the overall cost of the concrete mixing pump.
Other Materials: Additional raw materials such as rubber (for hoses), electrical components, and engines also play a role. Price changes in these materials can also affect the final price of pompa pengaduk beton.
Capacity
Volume Capacity: The amount of concrete the mixer can handle in a single batch. Higher capacity models are typically more expensive because they require more robust components to handle larger volumes.
Pump Capacity: The rate at which the pompa hidrolik mixer can move concrete. Higher pumping capacities are generally more costly due to the need for more powerful motors and efficient pumping mechanisms.
Configuration
Mixer Type: Different types of mixers (e.g., drum mixers, twin-shaft mixers) have varying costs due to their complexity and efficiency.
Pump Type: The type of pump (e.g., piston pump, peristaltic pump) also affects the price. Some pumps are more efficient or durable, leading to higher costs.
Automation and Control Systems: Advanced control systems and automation features can increase the price. These systems can improve efficiency and ease of use but come at an added cost.
Brand and Manufacturer
Reputation and Quality: Well-known brands with a reputation for quality typically charge more. However, they often provide better reliability, service, and warranty options.
Manufacturing Location: Where the concrete pump mixer truck is manufactured can impact the price due to differences in labor costs, manufacturing standards, and import/export tariffs.
After-Sales Service and Warranty
Service Packages: Comprehensive after-sales service packages and extended warranties add to the initial cost but can be valuable for long-term maintenance and support.
Spare Parts Availability: Easy access to spare parts can influence the decision and cost. Portable concrete pump with easily available parts might be priced higher due to the convenience they offer.
Customization
Specific Requirements: Custom features or modifications to meet specific project needs can raise the price. This might include special mixer or pump, additional safety features, or enhanced mobility options.
By carefully considering these factors, customers can select concrete mixers and pumps that meets their demands efficiently and economically. Always seek professional advice to ensure you get the most suitable small concrete pump for your project.
Why You Should Invest in a Concrete Mixer Pump in Indonesia
Investing in a concrete mixer pump in Indonesia can offer numerous strategic advantages for your construction business. Here are the compelling reasons to consider:
Growing Construction Market
Economic Growth: Indonesia’s rapidly growing economy is driving an increase in infrastructure and construction projects.
Urbanization: The ongoing urbanization and development of metropolitan areas create a steady demand for efficient construction solutions.
Efficiency and Productivity
Time Savings: A mixer concrete pump combines mixing and pumping into one process, significantly reducing time on-site.
Labor Savings: The pompa mixer beton requires fewer workers to operate, translating to reduced labor costs and increased productivity.
Cost-Effectiveness
Lower Operational Costs: The dual functionality of mixing and pumping in one machine reduces the need for multiple pieces of equipment, lowering overall investment and maintenance costs.
Fuel Efficiency: Modern mixer concrete pumps are designed to be fuel-efficient, thus cutting down on fuel expenses.
Versatility and Flexibility
Wide Range of Applications: Suitable for various types of construction projects, including residential, commercial, and industrial.
Adaptation to Local Conditions: Can be used in diverse terrains and meet different project requirements in Indonesia, from urban high-rises to rural developments.
Quality and Precision
Consistent Mixing: Ensures a homogeneous concrete mix, enhancing the durability and strength of the structures.
Accurate Pumping: Provides precise placement of concrete, which is crucial for complex architectural designs and high-rise buildings.
Mobility and Accessibility
Compact Design: Easy to transport to different job sites, particularly beneficial for projects in remote or hard-to-reach areas.
Quick Setup: Fast and straightforward setup reduces downtime, allowing for quicker project initiation and completion.
Enhanced Safety
Automated Systems: Reduces human error, enhancing overall safety on the construction site.
Stable Operation: Designed to operate stably and reliably, minimizing the risk of accidents.
Environmental Considerations
Reduced Material Waste: Efficient use of materials minimizes waste, promoting sustainable construction practices.
Lower Emissions: Advanced models adhere to stricter environmental standards, producing fewer emissions compared to traditional methods.
Competitive Edge
Technological Advantage: Investing in modern machinery like a cement mixer pump can set you apart from competitors who rely on traditional methods.
Customer Satisfaction: Enhanced efficiency, quality, and speed will likely lead to higher customer satisfaction and more business opportunities.
Investing in a concrete mixer pump trailer in Indonesia is a strategic move that can boost your operational efficiency, reduce costs, and improve the quality of your construction projects. Given the growing demand for construction and infrastructure development in the country, this investment can provide you with a significant competitive edge and long-term benefits.
Unique Features Of Mini Concrete Mixer with Pump
- Advanced Hydraulic System: The concrete mix pump has an open hydraulic system with double pumps and double circuits. The main pump oil supply and S valve swing oil work independently. This design simplifies the system, extends its life, and makes it more reliable. It also makes it easier to diagnose and fix problems.
- Enhanced Performance: The mixer has an anti-pump function that quickly clears pipe blockages. It also features an advanced S-shaped distribution valve. This valve automatically adjusts for wear, ensuring good sealing performance.
- Durability and Longevity: The mixer concrete pump utilizes a wear-resistant alloy glasses plate and a floating cutting ring. These components offer a long service life, ensuring durability.
- Efficient Lubrication: Concrete mixers and pumps feature an automatic centralized lubrication system that ensures effective lubrication during operation.
- User-Friendly Operation: The concrete mix pump comes equipped with a remote control, providing safer and more convenient operation.
- Standardized Spare Parts: All spare parts of the mixer adhere to national standards, ensuring good interchangeability and easy availability.
- Effective Cooling System: The cooling system uses a large radiator with forced air cooling to keep hydraulic oil temperatures below 70℃, ensuring the hydraulic system operates under normal conditions.
- High Reliability: The mixer has a low failure rate, enhancing time and work efficiency.
- Extended Equipment Lifespan: The concrete mixer machine with pump features a swing cylinder with a buffer system that reduces impact on the hydraulic system, thereby extending its lifespan.
- Competitive Pricing and Excellent Service: The concrete pump with mixer for sale offers competitive pricing and comprehensive service (pre-sale, sale, and after-sales) to meet customer needs.
Concrete Mixer With Pump FAQs
What is a concrete mixer with pump?
- A concrete mixer with pump is a machine that combines the functions of mixing concrete and pumping it to locations where it is needed.
- This dual-purpose concrete mix and pump is efficient and ideal for small to medium-sized construction projects.
How to buy a high-quality concrete pump with mixer machine?
- Assess your project needs and budget.
- Research and compare different brands and models.
- Check reviews and testimonials from other users.
- Ensure the machine has a robust after-sales service and warranty.
- Verify the durability and performance specifications.
- Consult with industry experts or colleagues for recommendations.
What is the best concrete mixer and pumping machine?
- The best concrete mixer and pumping machine depends on your specific needs, such as project size, location, and budget.
- You can also choose AIMIX, one of the outstanding trailer concrete mixer pump supplier in Indonesia
What is an electric cement mixing pump machine?
- An electric cement mixing pump machine is a type of concrete mixer with pump machine that uses an electric motor for operation.
- It is often more environmentally friendly and quieter compared to diesel-powered versions, making it suitable for urban and residential projects.
AIMIX Service in Indonesia
At AIMIX, we’re dedicated to supporting our customers in Indonesia with reliable and efficient service. Our local team is ready to help you with high-quality equipment and prompt, effective support. Here are some key services we offer to ensure your construction projects run smoothly.
Local Branch Office
AIMIX has a branch office in Indonesia to provide faster and better services. This allows us to quickly address any questions or issues you might have with our cement mixer pumping machines.
Stocked Equipment & Parts
We maintain several warehouses in Indonesia stocked with products like the ABJZ40C diesel concrete mixer pump. Customers can see and buy our products quickly and conveniently.
Training and Installation
We offer comprehensive training and installation services to ensure that your team can operate our equipment efficiently and safely. This includes on-site training and detailed user manuals.
Customer Support
Our local team is always ready to assist you with any inquiries or technical support you may need. This ensures timely help and smooth operations for your construction projects.
In Conclusion
If you are interested in our concrete mixer with pump for sale, please leave a message in the form below for more details. With the construction industry booming in Indonesia, this high-quality equipment can greatly improve your project efficiency. Don’t miss out on this opportunity. Contact us now and elevate your construction projects!
