Capacity: 30m³/h – 90m³/h
Power: Diesel | Electric Engine
Features: Efficient | Durable | Easy to Operate

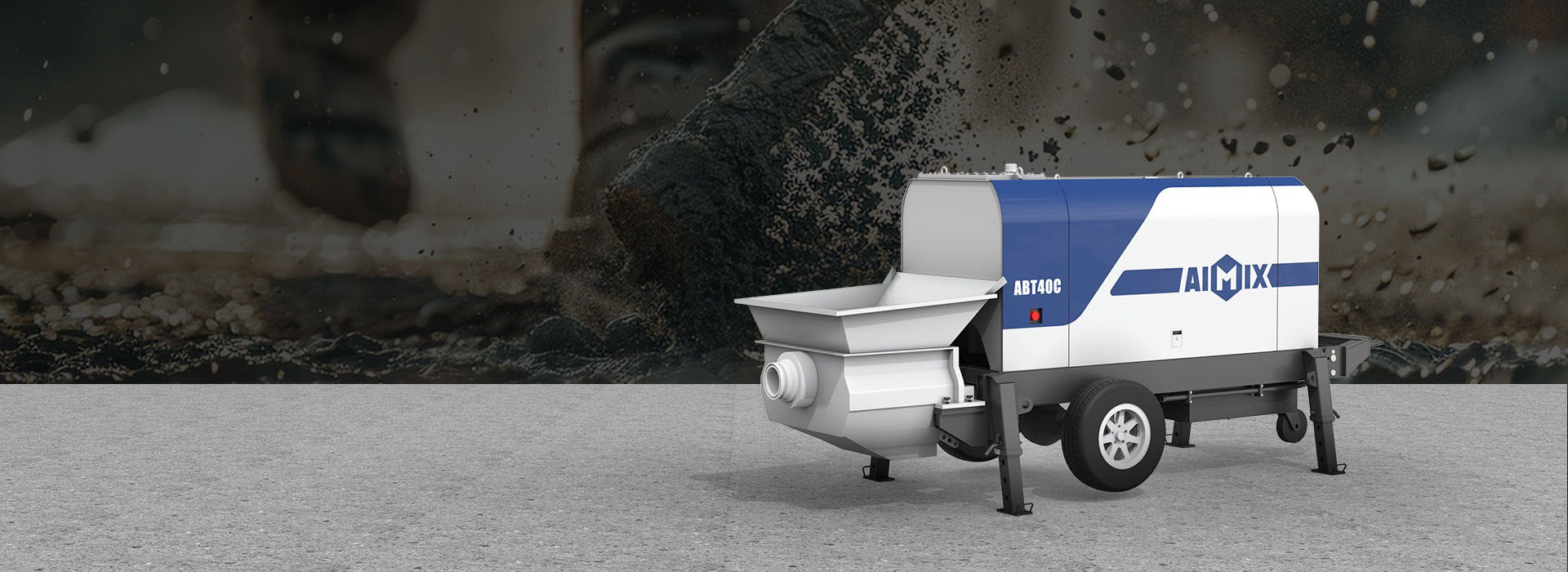

Concrete trailer pump is a construction equipment that uses high-pressure hydraulics to transport and place concrete efficiently at construction sites. It is mainly used for the concrete conveying work for concrete construction projects, including high-rise building construction, highway construction, overpass construction, civil building construction, and so on. Let’s learn more about this pompa kodok beton in detail!
- Capacity(m3/h): 30-90
- Type: Diesel/Electric
- Max. Theoretical Throughput (L./H)(m3/h): 40/26
- Aggregate Diameter(mm): Scree: 10/50
- Vertical Conveying Distance(m): 120-260
- Horizontal Conveying Distance(m): 500-1200
Master Parts:
Trailer base, wheels, filtering hopper, hydraulic pressure parts, electric/diesel parts, pipes.
Trailer Concrete Pump Cases in Indonesia
Our AIMIX trailer concrete pumps are highly popular in Indonesia due to their excellent performance and reliability. We are proud to showcase some local cases where our trailer mounted concrete pumps have significantly contributed to successful construction projects:

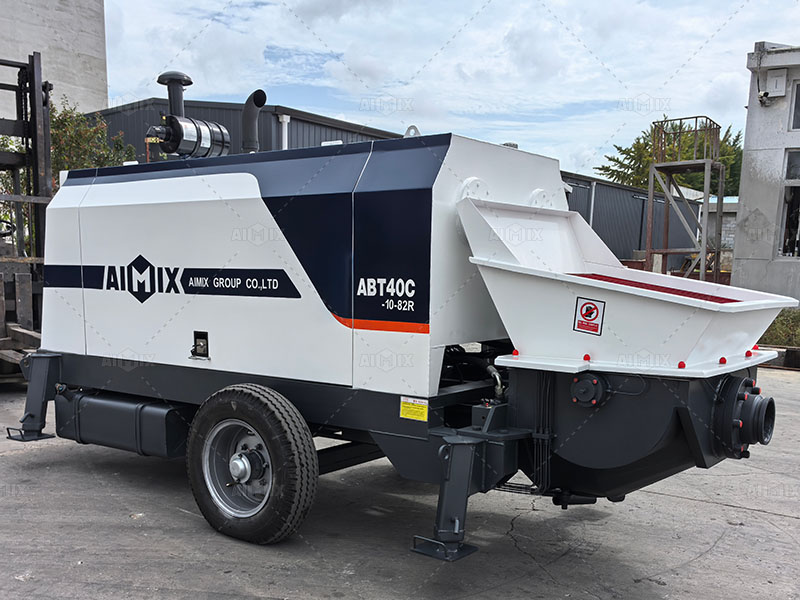

ABT40C Diesel Trailer Concrete Pump for House Construction
Delivery time: July 2022
Location: in Kupang, Indonesia
Type: ABT40C Diesel Type
Customer Review:The ABT40C diesel trailer pump performed excellently for our 45-meter high hotel project in Kupang, Indonesia. Highly efficient and reliable—very satisfied!
ABT30C Diesel Trailer Pump Concrete for Foundation Pouring Work
Delivery time: March2023
Location: in Manowari, Papur, Indonesia
Type: ABT30C Diesel Type
Customer Review:This pump beton was working efficient for pouring concrete to make a solid foundation. Thanks to AIMIX service team recommending a suitable model.
AS-2.6 Carmixer and ABT40D Concrete Pump for Home construction
Delivery time: February 2023
Location: in Kalimatan
Model: ABT40D Electric Type
Customer Review:Combination between the carmixer and trailer pump greatly improves our working efficiency. Therefore, it saves both the money and labors.
ABT40C Diesel Trailer Concrete Pump for Rural Housing Building
Delivery time: July 2024
Location: in Kupang, Indonesia
Model: ABT40C Electric Type
Customer Review:The ABT40C’s powerful performance and reliable pumping have been perfect for our project in Kupang. It’s efficient and handles our needs smoothly.
What Are the Different Types of Trailer Concrete Pump?
Trailer concrete pumps are essential pieces of equipment in construction projects, designed to efficiently transport and place concrete. Based on the type of power source they use, stationary trailer concrete pumps can be broadly categorized into two types: diesel-powered trailer concrete pumps and electric-powered trailer pumps concrete. Here’s an overview of each type of concrete pump:
Diesel Concrete Pump Trailer
At Aimix, our diesel concrete trailer pumps are a big hit, especially in Indonesia where we’ve sold over 1000 units. We offer five main models: ABT30C, ABT40C, ABT60C, ABT80C, and ABT90C. The “C” stands for diesel engine, and the numbers (30, 40, 60, 80, 90) represent their maximum pumping capacities in cubic meters per hour. The hot selling ABT40C is our best-seller because it perfectly balances capacity and efficiency. Let’s see more details about the diesel concrete pump in the following
Key Features of Concrete Trailer Pump
- Independent Operation: Suitable for areas without electrical power.
- High Capacity: Capable of handling large-scale projects with significant concrete pumping requirements.
- Versatility: Can operate in any location, making them ideal for remote construction sites.
- Extended Reach: Typically offers longer horizontal and vertical pumping distances.
- Portability: Equipped with towing hooks for easy transport between sites.

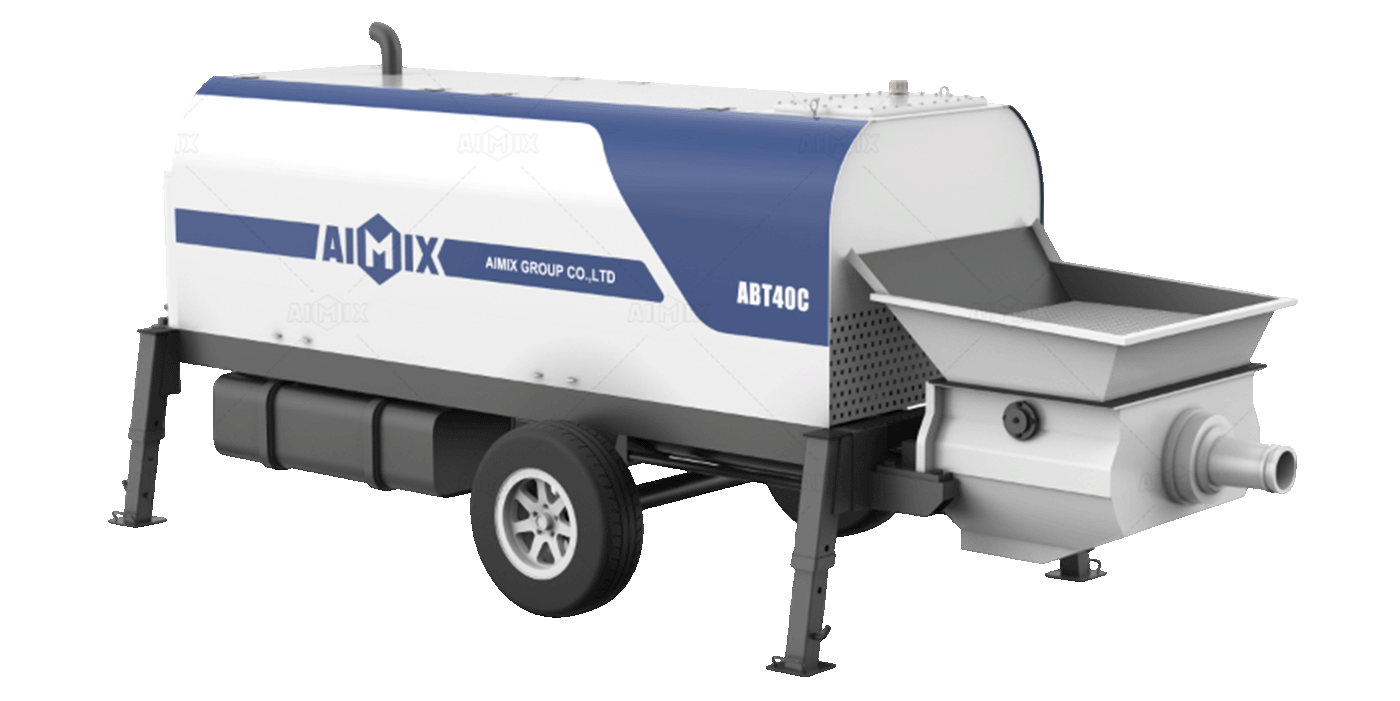

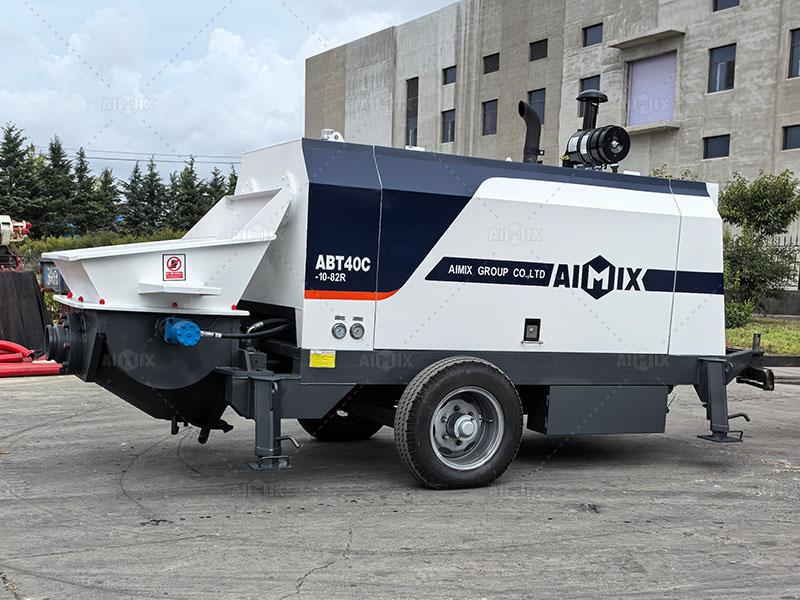

ABT40C Cement Pump Trailer Capacity: 40/26(m3/h)
- Max. Theoretical Throughput (L./H)(m3/h): 40/26
- Max. Theoretical Vertical Conveying Distance(m): 120
- Max. Theoretical Horizontal Conveying Distance(m): 500
- Max. Aggregate Diameter(mm): Scree:40
- Max. Concrete Pumping Pressure(L./H)(mpa): 8/10
- Hopper Capacity×Feeding Height(L×mm): 400×1250

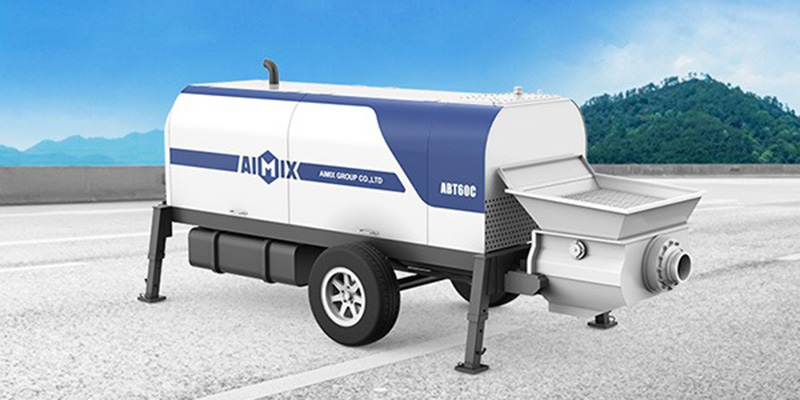

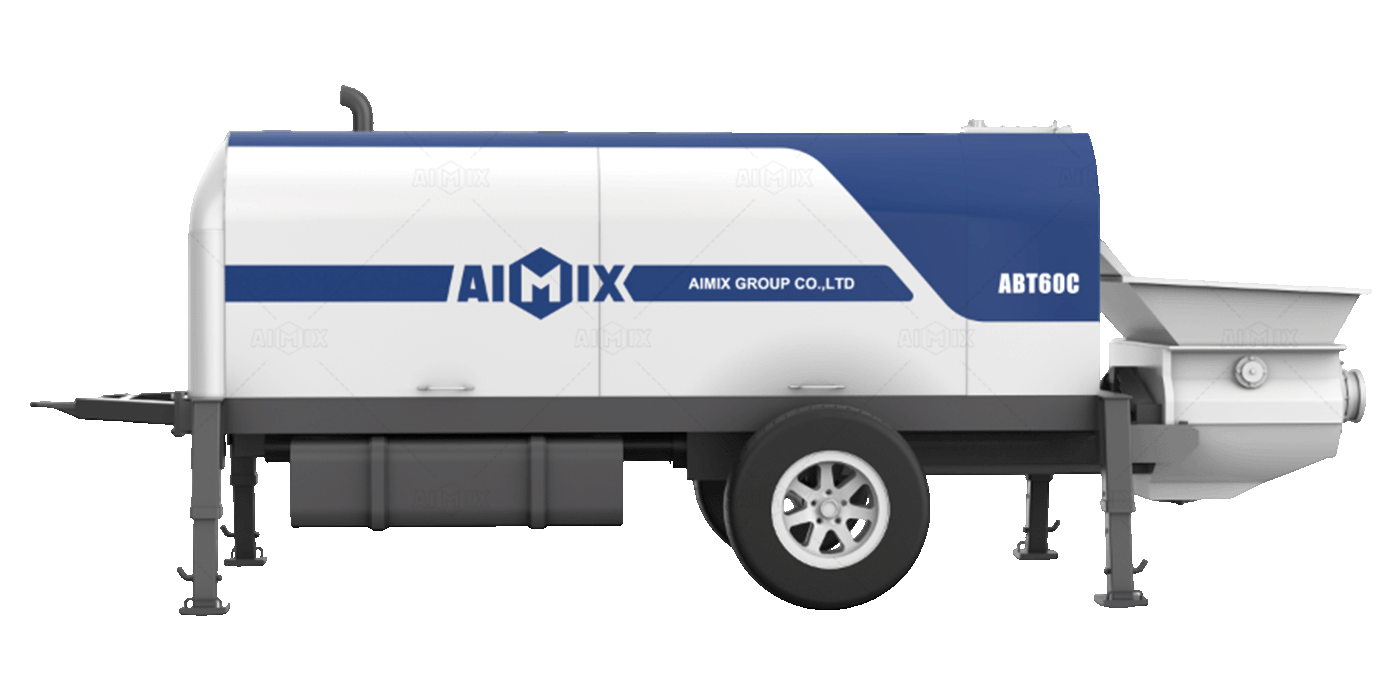

ABT60C Trailer Pump for Concrete Capacity: 45/67(m3/h)
- Max. Theoretical Throughput (L./H)(m3/h): 45/67
- Max. Theoretical Vertical Conveying Distance(m): 180
- Max. Theoretical Horizontal Conveying Distance(m): 1000
- Max. Aggregate Diameter(mm): Scree:40
- Max. Concrete Pumping Pressure(L./H)(mpa): 13/7
- Hopper Capacity×Feeding Height(L×mm): 800×1400
ABT80C Concrete Pump on Trailer Capacity: 45/84(m3/h)
- Max. Theoretical Throughput (L./H)(m3/h): 45/84
- Max. Theoretical Vertical Conveying Distance(m): 260
- Max. Theoretical Horizontal Conveying Distance(m): 1200
- Max. Aggregate Diameter(mm): Scree:40
- Max. Concrete Pumping Pressure(L./H)(mpa): 16/7
- Hopper Capacity×Feeding Height(L×mm): 800×1400

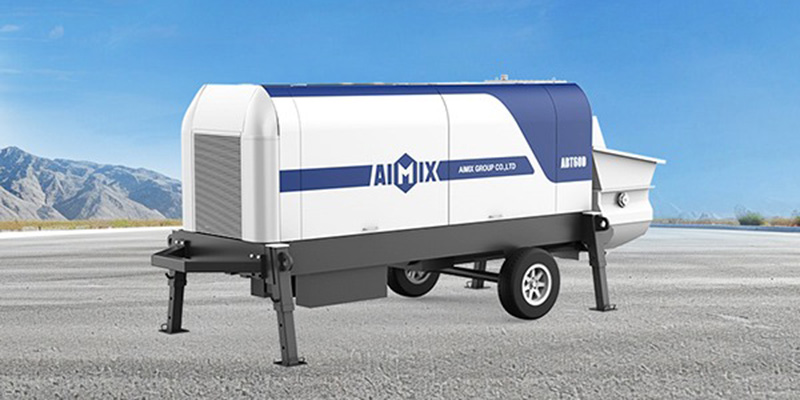

Electric Concrete Pump Trailer
At Aimix Group, we offer electric-type trailer concrete pumps, including models ABT40D, ABT60D, and ABT80D. The “D” indicates that these trailer pumps concrete are powered by electricity. Here are some features and parameters of our electric concrete trailer pump.
Key Features of Electric Pompa Kodok Beton
- Electric Motor: Powered by an electric motor requiring a reliable power source.
- Efficiency: Known for efficient operation and lower noise levels.
- Eco-Friendly Operation: Lower emissions and noise, making them suitable for urban and residential areas.
- Cost-Effective: Lower operational costs due to reduced fuel consumption and maintenance.
- Consistent Power Supply: Ensures smooth and continuous operation.

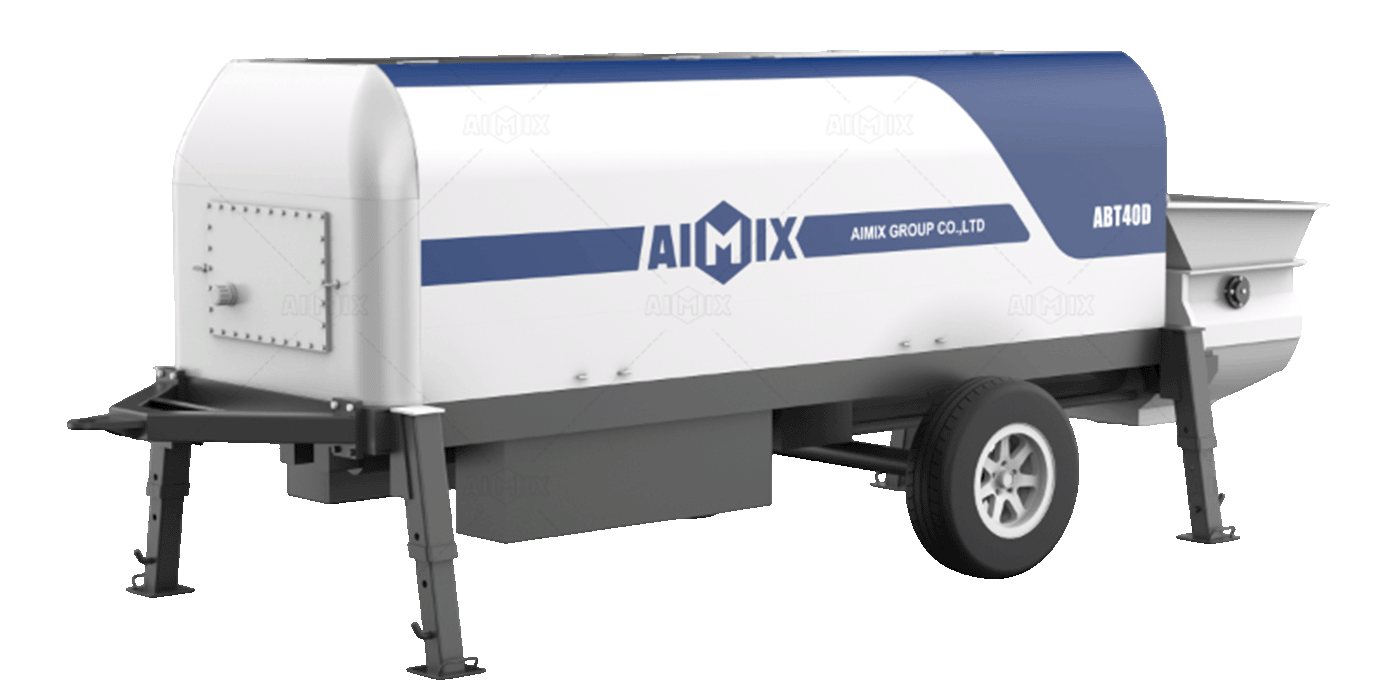

ABT40D Concrete Pumping Trailer Capacity: 26/40(m3/h)
- Max. Theoretical Throughput (L./H)(m3/h): 26/40
- Max. Theoretical Vertical Conveying Distance(m): 120
- Max. Theoretical Horizontal Conveying Distance(m): 600
- Max. Aggregate Diameter(mm): Scree:40
- Max. Concrete Pumping Pressure(L./H)(mpa): 10/8
- Hopper Capacity×Feeding Height(L×mm): 400×1100

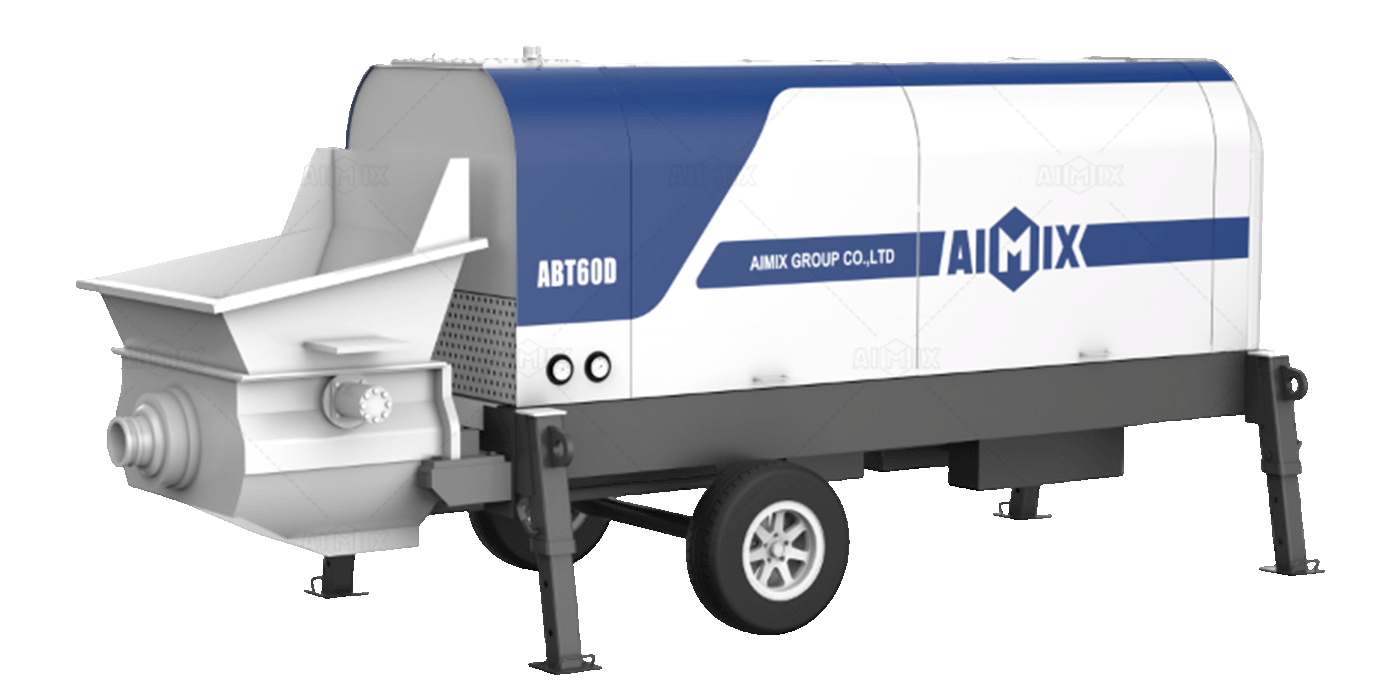

ABT60D Concrete Pumping Trailer Capacity: 36/60(m3/h)
- Max. Theoretical Throughput (L./H)(m3/h): 36/60
- Max. Theoretical Vertical Conveying Distance(m): 160
- Max. Theoretical Horizontal Conveying Distance(m): 800
- Max. Aggregate Diameter(mm): Scree:40
- Max. Concrete Pumping Pressure(L./H)(mpa): 13/7
- Hopper Capacity×Feeding Height(L×mm): 800×1400
ABT80D Concrete Pumping Trailer Capacity: 46/84(m3/h)
- Max. Theoretical Throughput (L./H)(m3/h): 46/84
- Max. Theoretical Vertical Conveying Distance(m): 200
- Max. Theoretical Horizontal Conveying Distance(m): 1000
- Max. Aggregate Diameter(mm): Scree:40
- Max. Concrete Pumping Pressure(L./H)(mpa): 16/9
- Hopper Capacity×Feeding Height(L×mm): 800×1400
Trailer Concrete Pump Technical Specifications
In the construction industry, trailer concrete pumps are essential for efficient and accurate concrete placement. Understanding the technical specifications of these pumps is crucial for selecting the right model to match the project’s requirements. Below are tables summarizing the key specifications for diesel-powered and electric-powered trailer concrete pumps.
Items | Units | ABT40C | ABT60C | ABT80C |
---|---|---|---|---|
Max. theo. concrete output(H./L.) | m3/h | 26/40 | 45/87 | 45/84 |
Max. concrete pumping pressure(H./L.) | Mpa | 10/8 | 13/7 | 16/7 |
Distribution valve type | S | S | S | |
Concrete cylinder diameter×stroke | mm | Φ180/1300 | Φ200/1650 | Φ200/1800 |
Hopper capactiy × feeding height | L×mm | 400×1250 | 800×1400 | 800×1400 |
Outlet diameter | mm | Φ150 | Φ180 | Φ180 |
Diesel engine model | Weichai | Weichai | Weichai | |
Electrical engineering power | KW | 82 | 129 | 176 |
Rotate speed | r/min | 2200 | 2200 | 2200 |
Circuit type | Open circuit | Open circuit | Open circuit | |
Pumping system pressure | Mpa | 32 | 32 | 32 |
Mixing system pressure | Mpa | 10 | 10 | 10 |
Max mixing speed | r/min | 25 | 25 | 25 |
Capacity of oil tank | L | 370 | 560 | 560 |
The biggest transportation is away from vertically(/Level) | m | 120/500 | 180/1000 | |
Max. aggregate diameter | mm | Scree:40 | Scree:40 | Scree:40 |
Inside diameter of delivering pipe | mm | Φ125 | Φ125 | Φ125 |
Dimensions: length×width×height | mm | 4500×1850×1700 | 5800×2000×1750 | 6300×2100×2350 |
Total weight | kg | 4500 | 6500 | 6900 |
Items | Units | ABT40D | ABT60D | ABT80D |
---|---|---|---|---|
Max. theo. concrete output(H./L.) | m3/h | 26/40 | 36/60 | 46/84 |
Max. concrete pumping pressure(H./L.) | Mpa | 10/8 | 13/7 | 16/9 |
Distribution valve type | S | S | S | |
Concrete cylinder diameter×stroke | mm | Φ180/1200 | Φ200/1650 | Φ200/1800 |
Hopper capactiy × feeding height | L×mm | 400×1100 | 800×1400 | 800×1400 |
Outlet diameter | mm | Φ150 | Φ180 | Φ180 |
Electrial engineering power | Kw | 45 | 90 | 110 |
Rotate speed | r/min | 1480 | 1480 | 1480 |
Circuit type | Open circuit | Open circuit | Open circuit | |
Pumping system pressure | Mpa | 28 | 32 | 32 |
Mixing system pressure | Mpa | 10 | 10 | 10 |
Max mixing speed | r/min | 25 | 25 | 25 |
Capacity of oil tank | L | 370 | 560 | 560 |
The biggest transportation is away from vertically(/Level) | m | 120/600 | 160/800 | 200/1000 |
Max. aggregate diameter | mm | Scree:40 | Scree:40 | Scree:40 |
Inside diameter of delivering pipe | mm | Φ125 | Φ125 | Φ125 |
Dimensions: length×width×height | mm | 4500×1750×1600 | 5800×2000×1750 | 6300×2100×2250 |
Total weight | Kg | 3200 | 6000 | 6300 |
What About the Concrete Trailer Pump Price in Indonesia?
How much is a concrete pump trailer? When looking to purchase a concrete trailer pump in Indonesia, it’s essential to know what affects the harga pompa kodok beton. AIMIX provides a range of concrete trailer pumps tailored to various projects and budgets. AIMIX trailer mounted concrete pump price ranges from $15,000 to $60,000. To assist you in making an informed choice, here’s a glance at the what is the price range for trailer concrete pumps.
- For the Electric-type: The ABT40D to ABT80D trailer concrete pump prices vary from 20000 USD – 50000 USD.
- About the Diesel-type: The ABT30C to ABT90C concrete trailer pump costs vary from 15000 USD – 60000 USD.
Model | Price (USD) | |
---|---|---|
Diesel Concrete Trailer Pump | ABT30C | $15,000 to $30,000 |
ABT40C | $22,000 to $35,000 | |
ABT60C | $22,000 to $35,000 | |
ABT80C | $25,000 to $50,000 | |
ABT90C | $30,000 to $60,000 | |
Electric Concrete Trailer Pump | ABT40D | $20,000 to $30,000 |
ABT60D | $25,000 to $50,000 | |
ABT80D | $30,000 to $50,000 |
How much does a trailer mounted concrete pump cost? Therefore, you can know how much does a concrete pump trailer cost. By understanding these jual pompa beton kodok and factors, you can make a more informed decision when purchasing a trailer pump concrete in Indonesia. If want to know how much does a concrete trailer pump cost in detail, please contact us at any time and we will provide customized solutions for you.
Trailer Concrete Pump with Other Equipment Solutions

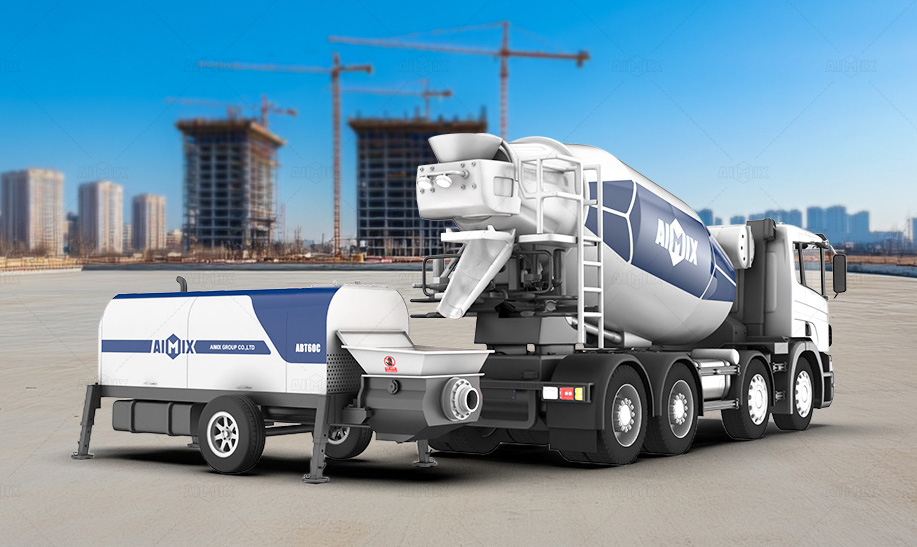

Concrete Mixer Truck + Concrete Pump Trailer
Self-Loading Concrete Mixer + Trailer Pump
Concrete Mixer + Concrete Pump on Trailer
What Fields Can You Use Our Trailer Pumps for?
What types of construction projects can a concrete pump trailer handle? Concrete trailer pumps are crucial in today’s construction, offering flexibility and efficiency for different projects. From homes and offices to large infrastructure and industrial sites, these trailer pumps concrete speed up and improve concrete placement. Let’s learn what are concrete trailer pumps used for:
- Residential Construction: Efficiently pour foundations, floors, and walls.
- Building Construction: Quickly complete the structural pouring of multi-story office buildings.
- Bridge Engineering: Precisely pour bridge piers and decks.
- Tunnel Projects: Flexibly pour tunnel linings in confined spaces.
- Factory Building Construction: Pour large-area, heavy-duty factory floors.
- Urban Plaza Construction: Rapidly lay the concrete surface for plazas.
Trailer Concrete Pump Application in Other Countries
AIMIX pompa kodok beton is not only popular in Indonesia but are also widely used in various countries globally. Both our concrete mixer pump and trailer pump are welcomed here. Here are some picture cases showcasing their applications in the following:
ABT40C for Building A Factory in the Philippines
ABT40C for House Concrete Pouring in the Philippines
ABT60C Making Prefab Concrete Products in Uzbekistan
ABT60C Pouring Concrete for 13-Floor House in the Philippines
ABT80C for Tunnel Construction in Peru
ABT40C for Floor Pouring Work in Uzbekistan
ABT40C for Bridge Building in Malaysia
ABT30C Concrete Pump for Seaside Resort Villa Project in the Philippines
ABT40C Diesel Concrete Pump for Residential Building in Thailand
ABT40C Trailer Concrete Pumps for House Building in Papua
What Are The Advantages Of Trailer Concrete Pumps?
A trailer concrete pump offers several advantages that make it a valuable asset in various construction projects. Here are some of the notable benefits:
Portability and Flexibility
Trailer concrete pumps are highly portable, allowing them to be easily transported to different job sites. This mobility ensures that concrete can be efficiently delivered to hard-to-reach areas, such as high-rise buildings or sites with limited access.
Increased Efficiency
The pompa kodok beton can deliver concrete at a consistent flow rate, reducing the time and labor required to manually transport and pour concrete. This efficiency translates into faster project completion times and reduced labor costs.
Precision and Control
Mobil pompa readymix offers precise control over the flow and placement of concrete. This precision is particularly valuable in complex projects requiring detailed work, such as decorative concrete or structural elements with specific design requirements.
Versatility
The pompa beton kodok is suitable for a wide range of applications, from small residential projects to large commercial or industrial constructions. Their ability to handle various types of concrete, including those with different consistencies and aggregates, makes them versatile tools for diverse construction needs.
Reduced Labor Costs
By automating the concrete delivery process, trailer pumps concrete minimize the need for manual labor. This not only reduces labor costs but also lowers the risk of injuries associated with manual concrete handling.
Consistency and Quality
The use of trailer concrete pumps ensures a more consistent mix and placement of concrete, which is crucial for the structural integrity and durability of the finished structure. Uniformity in concrete placement helps in achieving higher quality construction.
Environmental Benefits
Trailer pumps concrete can reduce the amount of waste generated on-site by delivering the exact amount of concrete needed directly to the point of use. This minimizes spillage and excess material, contributing to a cleaner and more environmentally friendly construction site.
Cost-Effectiveness
Although the initial investment in a trailer concrete pump mini may be significant, the long-term savings in labor, time, and improved efficiency often make it a cost-effective solution for many construction projects.
Enhanced Safety
By reducing the need for manual handling of concrete, concrete pump on trailer contributes to a safer working environment. They help prevent common injuries associated with lifting, carrying, and pouring concrete manually.
Adaptability to Various Conditions
Trailer concrete pumps can operate in different weather conditions and terrains, providing reliable performance whether the project is in an urban setting or a remote, rugged location.
In summary, trailer concrete pumps offer a combination of portability, efficiency, precision, and versatility that can significantly enhance the productivity and quality of construction projects. These advantages make them a valuable investment for contractors looking to improve their operational effectiveness and project outcomes.
How to Choose A Right Concrete Trailer Pump in Indonesia?
Choosing the right concrete trailer pump is crucial for successful construction projects in Indonesia. Whether you’re working on high-rise buildings or large-scale foundations, the right concrete pump kodok can boost efficiency and ensure quality. With so many options available in the market, finding the perfect match for your project can be challenging.
Capacity and Specifications
Assess your project requirements such as the volume of concrete to be pumped and the distance or height it needs to reach. Choose a concrete pump trailer with the right capacity and pressure ratings.
Local Support and Service
Ensure the availability of local service centers and spare parts. Check for manufacturer or dealer support in Indonesia for maintenance and repairs.
Portability and Ease of Use
Consider the concrete pumping trailer’s ease of transportation and setup. Look for user-friendly controls and features that facilitate operation.
Quality and Reliability
Opt for reputable brands known for durability and performance. Read reviews and possibly get recommendations from other contractors about large or small concrete pump.
Budget and Cost Efficiency
Compare initial costs, but also factor in long-term operational and maintenance expenses. Analyze the cost-benefit ratio to ensure you’re getting value for your investment.
Compliance with Local Regulations
Verify that the concrete pumping trailer meets Indonesian safety and environmental standards. Ensure the concrete pump kodok is compliant with any local regulations and building codes.
How Does A Concrete Trailer Pump Work?
How a concrete trailer pump works? Cara kerja pompa kodok? Understanding how a concrete trailer pump works is essential for its proper use and maintenance. This article will explain the working process of a pompa beton kodok, helping you make the most of this powerful construction tool. Here’s a step-by-step overview of how a concrete pump works:
1. Preparation
Setup: The trailer concrete pump for sale is transported to the construction site and positioned in a convenient location. It is then securely anchored.
Hose Connection: Flexible hoses or rigid pipes are connected to the towable concrete pump’s outlet. These hoses can be extended to reach the specific area where the concrete needs to be placed.
2. Concrete Loading
Mixing: Concrete is mixed to the required specifications, either on-site or delivered pre-mixed in a concrete truck.
Feeding the Hopper: The mixed concrete is poured into the concrete pump tow behind’s hopper, a large funnel-shaped container that holds the concrete before it’s pumped.
3. Pumping Mechanism
Hydraulic System: The trailer concrete pump for sale is typically powered by a hydraulic system. The hydraulic pressure drives the pumping pistons.
S-Valve or Rock Valve: Inside the concrete trailer pump for sale, an S-valve or rock valve alternates to allow concrete to enter one of the pumping cylinders while the other cylinder pushes concrete into the hoses.
4. Concrete Flow
Piston Action: The hydraulic pistons move back and forth. When one piston retracts, it pulls concrete from the hopper into its cylinder. Simultaneously, the other piston pushes concrete out of its cylinder and into the delivery hose.
Continuous Flow: This alternating action creates a continuous flow of concrete through the hoses to the desired location.
5. Delivery and Placement
Navigating Obstacles: The hoses can be maneuvered around obstacles, through narrow spaces, or even up to higher levels, making it easy to deliver concrete precisely where needed.
Placement: At the end of the hose, the concrete is discharged, ready for workers to place and finish as required.
6. Clean-Up
Flushing the System: After the job is done, the concrete trailer pump for sale and hoses need to be cleaned to prevent concrete from hardening inside. This typically involves flushing the system with water and sometimes using a cleaning ball to ensure thorough cleaning.
By understanding this process, construction teams can effectively utilize trailer-mounted concrete pumps to enhance productivity and accuracy in their projects.
How to Operate a Concrete Trailer Pump?
How to use a concrete trailer pump? Operating a concrete trailer pump is essential for many construction projects. Whether you’re experienced or a beginner, following the right steps ensures smooth and efficient operation. This guide will walk you through the basic procedures for inspecting, connecting, starting, operating, and maintaining a concrete trailer pump to help you get the job done right.
Inspect the Pompa Kodok Ready Mix
Ensure fuel and hydraulic oil are sufficient. Check all cables and connections for any damage. Make sure all rmc concrete pump components are functioning properly.
Connect the Pompa Ready Mix
Connect trailer concrete pumps for sale to the power source or engine. Install and secure the delivery pipeline, ensuring there are no leaks or loose connections.
Start and Lubricate
Start the engine or motor and let the ready mix concrete pump truck idle for a few minutes. Add lubricant to the hopper to ensure it spreads throughout the pipeline system. Manually lubricate the swing cylinder and concrete piston.
Add Concrete
Evenly pour the concrete into the hopper, ensuring there are no large chunks or impurities. Ensure the concrete slump is within the required range (18-22).
Begin Pumping
Slowly start the pumping process and gradually increase to the desired speed. Continuously monitor the flow of concrete to ensure smooth operation by the concrete line pump for sale.
Monitor Operation
Regularly check the pressure gauge and level indicators to ensure the system is operating correctly. If a blockage occurs, stop the concrete pump trailer for sale immediately and resolve the issue. Use the anti-pump function to clear blockages if necessary.
Shut Down and Clean
After completing the pumping work, allow trailer concrete pumps for sale to idle for a few minutes before shutting it down.
Open the hopper door to release any remaining concrete. Flush the hopper and delivery pipeline with clean water to ensure no residue is left. Use a sponge ball to clean the pipeline, ensuring no concrete remains inside.
Routine Maintenance
Regularly check and replace worn parts to maintain the pompa kodok ready mix in good condition. Keep the towable concrete pump for sale clean and routinely check the levels of hydraulic and lubricating oils. Following these steps will help you operate the trailer pump concrete safely and efficiently, ensuring smooth project execution.
What Type of Concrete can A Trailer-mounted Pump Handle?
A trailer-mounted concrete pump is designed to handle a variety of concrete mixes, but there are some limitations and specifications to consider for optimal performance. Generally, these concrete trailer pumps for sale can handle:
Standard Concrete Mixes
Pumpable Concrete
Aggregate Size
High-Strength Concrete
Specialty Mixes
How to Maintain Concrete Trailer Pump?
To ensure the normal operation and construction efficiency of the pompa cor kodok, regular inspection and maintenance are imperative. Operators should diligently check and maintain the equipment before and during construction. Let’s learn the concrete trailer pump maintenance guide in the following.
Daily Maintenance
- Check Hydraulic Oil: Inspect the hydraulic oil level and quality. The oil should be pale yellow and transparent without any emulsification or turbidity. Replace if necessary.
- Lubrication and Water Tank: Fill up with grease and ensure the water tank is filled with fresh water.
- Inspect Concrete Piston: Ensure the concrete piston is well-sealed. No slurry should infiltrate the water tank.
- Check Cutting Ring and Glasses Plate: The clearance between the cutting ring and glasses plate should be normal, with a maximum gap of 2 mm.
- Lubrication System: Check the lubrication system’s performance. The oiler indication rod should move back and forth, and lubricating oil should overflow from the S tube bearing swing arm and other lubrication points. Manual lubrication points should receive grease per shift.
- Electrical Components: Verify that all electrical components of the concrete line pump near me are functioning correctly.
- Distributing Valve and Mixing Plant: Ensure the distributing valve commutation and the mixing plant’s forward and reverse operations are normal.
- Concrete Pipe Inspection: Strike the concrete pipe to assess wear and check that all pipe joints are well-sealed.
- Hydraulic System: Inspect the hydraulic system for any oil spills or leaks.
Pump Maintenance After 50 Hours (1500-2500m³)
- Perform Daily Maintenance: Follow the daily maintenance steps.
- Check Thread Connections: Ensure all threaded connections are firm.
- Inspect Water Tank Bolts: Check the connecting bolts in the water tank to ensure they are secure.
- Vacuum Gauge and Filter: Check the vacuum gauge instructions and the condition of the filter.
Timed Maintenance After 100 Hours (3500-5000m³)
- Perform Previous Maintenance: Follow the steps outlined in the previous maintenance schedules.
- Inspect Cutting Ring and Glasses: Check for wear and adjust if necessary.
- Concrete Piston: Inspect for wear and replace if needed.
- Hydraulic Oil Quality: Check for signs of deterioration or emulsification. If found, thoroughly replace the oil and clean the tank.
- Water Contamination: Ensure the hydraulic oil hasn’t mixed with excessive water.
Pump Maintenance After 500 Hours (15000-25000m³)
- Perform Previous Maintenance: Follow the steps outlined in the previous maintenance schedules.
- Inspect S Pipe and Bearings: Check the wear condition of the S pipe and its bearings.
- Stirring Device: Inspect the mixing blades and bearings for wear.
- Hydraulic Oil Replacement: Check and replace the hydraulic oil if necessary, using the recommended brand. Replace the oil completely after pumping 800 m³ of concrete.
Regular Maintenance After 750 Hours
- Perform Previous Maintenance: Follow the steps outlined in the previous maintenance schedules.
- Concrete Cylinder: Inspect for wear in the concrete cylinder. Replace if the chromium plating layer is significantly worn.
- Complete Debugging: Fully debug the concrete pump trailer mounted to ensure all performance parameters meet the required standards.
By adhering to this maintenance guide, you can ensure the longevity and efficient operation of your ready mix concrete with pump near me. Regular maintenance not only prevents unexpected breakdowns but also enhances overall productivity.
How to Debug Concrete Trailer Pumps?
Debugging concrete trailer pumps is essential for ensuring optimal performance and longevity. Here is a clear and concise guide to help you troubleshoot common issues effectively. Let’s learn concrete trailer pump common failures and troubleshooting measures together!
Pumping System Failure
Master Cylinder Piston Does Not Move
- Possible Causes:
- Pump start button connection loss.
- Intermediate relay KA1 burns out.
- Electro-hydraulic directional control valve failure (guide valve core jammed or electromagnet valve YV3, YV4 burn out).
- Too little oil in the hydraulic tank.
- Filter seriously blocked.
- Solutions:
- Check and reconnect the pompa cor kodok start button.
- Replace the burned-out intermediate relay.
- Inspect and repair or replace the electro-hydraulic directional control valve.
- Refill the hydraulic tank with oil.
- Clean or replace the filter.
Main Oil Cylinder Is Not Reversing
- Possible Causes:
- Electro-hydraulic directional control valve core stuck.
- Electro-hydraulic directional control valve magnet coil YV3, YV4 burn out.
- Intermediate relay burns out.
- Solutions:
- Inspect and free the stuck valve core.
- Replace the burned-out magnet coils.
- Replace the intermediate relay.
Master Cylinder Piston Runs Slowly
- Possible Causes:
- The main oil cylinder valve is damaged.
- Filter clogging or insufficient hydraulic oil.
- Too little oil in the hydraulic tank.
- Failure to timely perform oil operations during high-rise pumping.
- Solutions:
- Replace the damaged valve.
- Clean the filter and refill the hydraulic oil.
- Refill the hydraulic tank with oil.
- Perform timely oil operations.
Poor Delivery Pipe Discharge
- Possible Causes:
- Concrete piston is badly worn.
- Glasses plate and cutting ring gap is too big.
- Poor material workability of concrete.
- S pipe valve plugs.
- Solutions:
- Replace the worn concrete piston.
- Adjust or replace the glasses plate and cutting ring.
- Improve the workability of the concrete mix.
- Clean or replace the S pipe valve.
Distributing Valve Swing Does Not Reach the Designated Position
- Possible Causes: Swinging cylinder nylon bearing worn out or deformation.
- Solutions: Adjust or replace gaskets under the oscillating cylinder nylon bearing.
Distributing Valve Swing Arm Side Leaks Mortar
- Possible Causes: S pipe waterproof dust ring deformation or bearing excessive wear.
- Solutions: Check and replace the worn or deformed parts.
Lubrication System Failure
Point Oiler Valve Core Jammed
- Possible Causes: Regular cleaning of the progressive type oil not performed.
- Solutions: Regularly clean the progressive type oil.
Lubrication Pump Discharge Valve Failure
- Possible Causes: Lubrication pump discharge valve failure.
- Solutions: Check and replace the valve.
Lubrication System Relief Valve Failure
- Possible Causes: Relief valve is faulty.
- Solutions: Inspect and replace the relief valve.
Inappropriate Lubricating Oil
- Possible Causes: The viscosity of lubricating oil is too high to pass through the filter.
- Solutions: Ensure the viscosity is suitable for passing through the filter.
Blocked Lubricating Oil Path
- Possible Causes: Commonly occurs at the big-end bearing lubrication points.
- Solutions: Clean and unblock the lubrication path as necessary.
Mixing System Failure
Poor Material Workability
- Possible Causes: Poor material workability of concrete.
- Solutions: Adjust the concrete mix for better workability.
Stirring Overflow Valve Pressure Too Low
- Possible Causes: Pressure setting too low.
- Solutions: Use wood to block mixing blades and adjust pressure to 12 MPa.
Hydraulic Motor Damage
- Possible Causes: Hydraulic motor is damaged.
- Solutions: Check and replace the hydraulic motor if necessary.
Gear Pump Damage
- Possible Causes: Gear pump of the mixing system is damaged.
- Solutions: Inspect and replace the gear pump.
Manual Reversing Valve Fault
- Possible Causes: Lever pull or fault prevents valve core from reaching the designated position.
- Solutions: Ensure the valve core reaches the designated position.
Stirring Shaft or Sleeve Damage
- Possible Causes: Stirring shaft or sleeve is damaged.
- Solutions: Clean and repair or replace damaged parts.
Start-Up Failure
Low Battery Voltage
- Possible Causes: Battery voltage is too low.
- Solutions: Recharge or replace the battery.
Air in Diesel System
- Possible Causes: Air comes in the diesel system.
- Solutions: Bleed the air from the system.
Electrical and Hydraulic Component Failure
Intermediate Relay Failure
- Possible Causes: Coil burn out or contact damage.
- Solutions: Replace the intermediate relay.
Electromagnet Burn Out
- Possible Causes: Electromagnet burns out or has poor contact.
- Solutions: Replace the electromagnet.
Proximity Switch Issue
- Possible Causes:
- Oil in the bottom made the induction ineffective.
- Big clearance made the induction ineffective.
- High water tank temperature causing misoperation.
- Completely damaged or always in the connected state.
- Solutions:
- Clean oil from the bottom.
- Adjust the clearance.
- Cool down the water tank.
- Replace the damaged proximity switch.
By following these troubleshooting steps, you can effectively debug and maintain your portable concrete pump, ensuring smooth operation and minimizing downtime.
Trailer Concrete Pump FAQs
Where Can I Find A Trailer-mounted Pump?
-
If you’re looking for a trailer-mounted concrete pump, there are several options you can explore:
- Official Website: Visit the company’s official website(such as https://aimixgroup.id/). Check their product catalog for details and specifications on pompa kodok ready mix.
- Contact Sales Team: Reach out to the sales team by phone(+62 898-3129-840) or email(sales@aimixgroup.id). Ask about product availability, pricing, and technical support.
- Local Distributors: Look for authorized equipment distributors in your area. They might have the concrete pump trailer mounted you need or can help you order one.
- Online Marketplaces: Browse industrial equipment on online marketplaces or platforms. Look for new or used concrete pump trailer mounted.
- Industry Trade Shows: Attend industry trade shows or expos. You can see the concrete delivery with pump near me in person and talk directly with pumped concrete suppliers near me.
Using these methods, you should be able to find a ready mix pump truck that meets your requirements.
What is the Components of Concrete Trailer Pump?
- The trailer concrete pump mainly include: Mixing motor, Pressure gauge, Hopper, Oil tank, Shell, Mixing valve, Main valve, Lubricant pump, Oil pump, Heat sink, Diesel engine, Electric cabinet, High-pressure oil pipe, Guide wheel, Accumulator, Power switch, Push machine.
Why Should A Trailer-mounted Concrete Pump Be Fed Continuously?
-
A trailer-mounted concrete pump needs continuous feeding for the following reasons:
- Maintains Steady Flow: Continuous feeding keeps the concrete flowing steadily, avoiding interruptions.
- Prevents Blockages: Regular feeding helps prevent blockages in the pump system.
- Ensures Optimal Performance: The trailer mounted concrete pump performs best with continuous feeding, reducing wear and tear.
- Ensures Uniform Quality: Continuous feeding ensures the concrete mix remains uniform.
- Increases Efficiency: Continuous feeding improves construction efficiency, reducing downtime.
This way, our trailer-mounted concrete pumps can work reliably and efficiently, ensuring project success.
What is A Trailer Concrete Line Pump?
- A trailer concrete line pump is a type of concrete pump mounted on a trailer, designed to transport and place concrete through a pipeline.
What Services Can You Get in Indonesia?
Aimix, a leading concrete trailer pump manufacturer, is dedicated to providing high-quality products and comprehensive service support. Whether you need customized pre-sale consultation or local technical support in Indonesia, we’ve got you covered. Below is a list of our concrete trailer pump service near me to help you find the perfect concrete pump trailer solution for your needs.
Customized Pre-sale Consultation
Aimix offers customized pre-sale consultations. Professional engineers provide tailored 3D drawings and layout plans for your ready mix concrete and pump, ensuring they meet the specific requirements of your project.
Machine Production Supervision
After placing your order, Aimix starts production immediately. Engineers supervise the entire process to ensure each part meets client specifications.
Shipping Services
Aimix’s 60-member after-service team selects the most cost-effective shipping method. We also reinforce machinery parts with ropes to prevent damage during transit.
Turnkey Service in Indonesia
Aimix offers comprehensive after-sale services, including custom clearance, machine delivery, door-to-door installation, worker training, and maintenance.
Local Agents in Indonesia
Aimix collaborates with local agents in various Indonesian cities such as Jakarta, Surabaya, Bandung, and Medan. These agents offer prompt and reliable technical support, ensuring you receive assistance whenever needed.
Local Warehouse in Indonesia
Aimix maintains a warehouse in Indonesia. You can visit to inspect the trailer concrete pumps in stock, aiding your decision-making process.
Contact AIMIX to inquire about the ready mix concrete pump prices or any other services you need!
In Conclusion
Investing in a reliable trailer concrete pump is crucial for your construction success. With Aimix, you get high-quality equipment and expert support. Don’t wait—contact AIMIX now to get the best trailer concrete pump for your project!
