Mini Concrete Pump For Sale

Mini concrete pump for sale is an easy operated concrete pumping machine and only needs 1-2 workers to go into operation. With movable structure of two-wheel truck chassis and small shape, concrete mini pump is a perfect ready-made concrete conveying and pouring machine which is mainly applied for rural self-built house construction, foundation pouring construction, bridge construction, tunnel construction, and so on. Aimix Group supplies two kinds of mini concrete pumps for sale in Indonesia, please go on reading to check these two kinds of pump details and our turnkey services in Indonesia.

• 1. Trailer-type Mini Concrete Pump for Sale: There are both electric and diesel trailer-type mini concrete pumps in Aimix Group. Mini concrete pump capacities vary from 26m3/h to 84m3/h. With regard to the diesel type, Aimix supplies ABT40C, ABT60C, and ABT80C models for sale in Indonesia. For the electric type, Aimix has ABT40D, ABT60D, and ABT80D. Consequently, you can choose one right model to suit your construction requirement.





• 2. Mixer-type Mini Concrete Pump for Sale: Aimix supplies electric and diesel mixer-type jual pompa mini in Indonesia. Towards the diesel type, Aimix has ABJZ30C and ABJZ40C. About the electric type, there are ABJZ30D and ABJZ40D for sale in Indonesia. And their concrete mixing capacities are from 30m3/h to 40m3/h.






Hot Models Of Aimix Mini Concrete Pumps For Sale in Indonesia:

Technical Specifications of Two Types of Mini Concrete Pumps for Sale in Aimix Group

Aimix has two mini concrete pump types, and they are trailer type mini concrete pump and mixer type mini concrete pump. Please go on reading to check their main differences and applications.

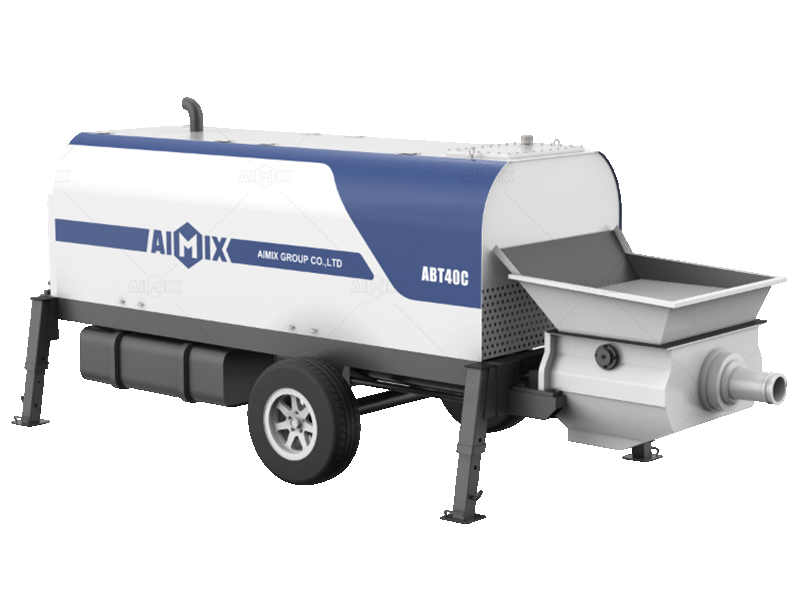

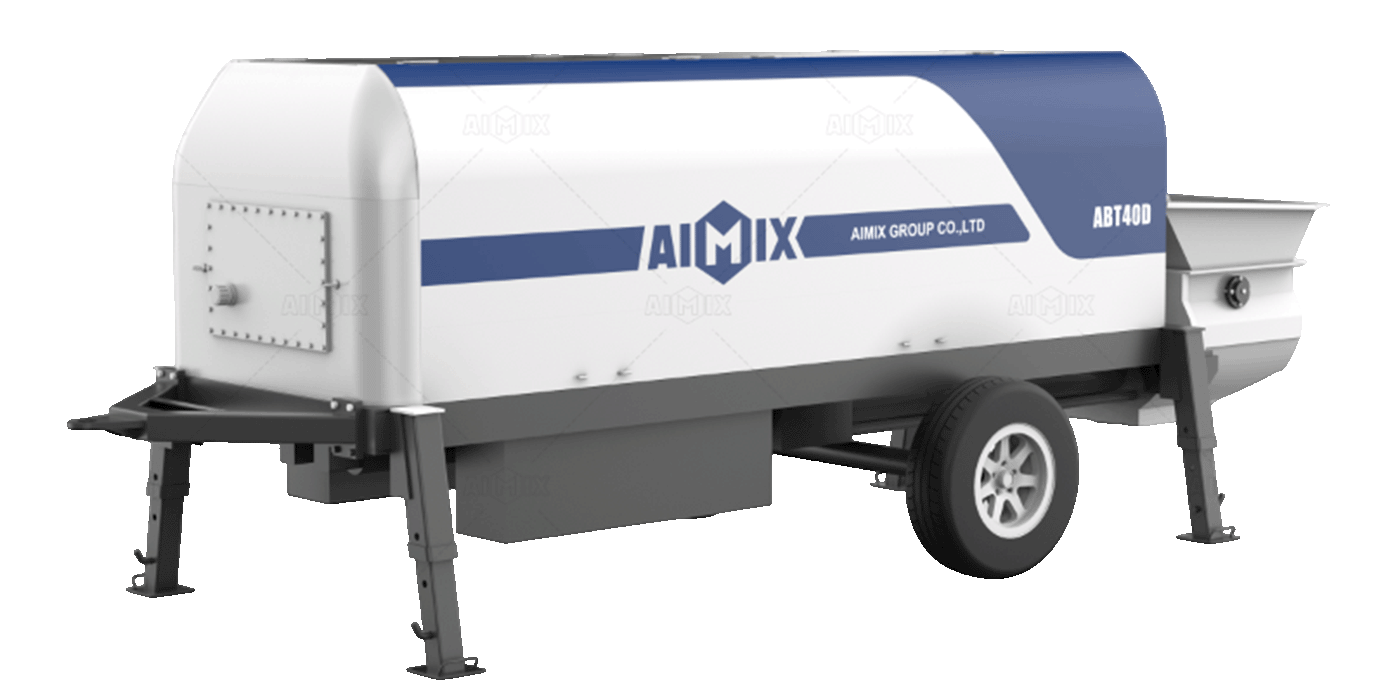

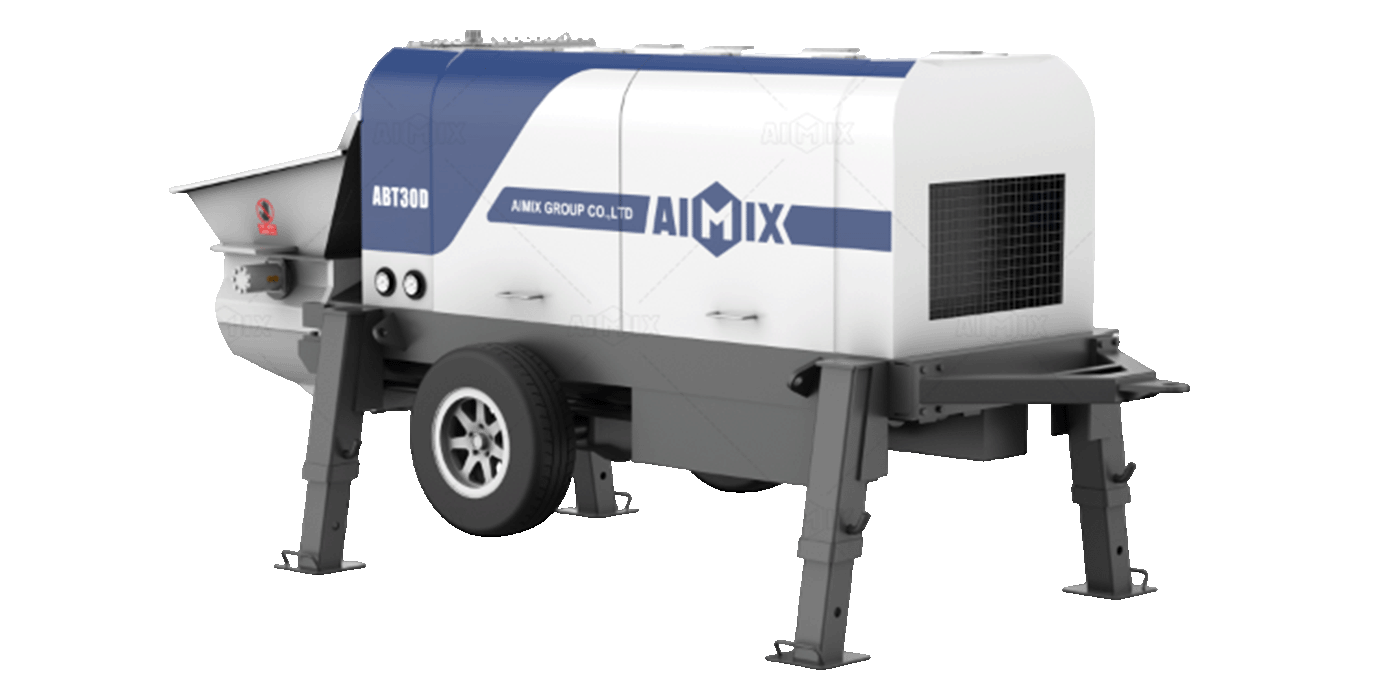

• Trailer Type Mini Concrete Pump for Sale

  What is a trailer-type mini concrete pump? Mini concrete pump is composed of main pump body and delivery pipes. It uses hydraulic pressure to accomplish continuous delivery of concrete along with the pipes. Thus, you can use this mini concrete pumping machine to convey the concrete discharged from a self-loading mix machine or a concrete mix truck to a remote construction site. A mini concrete pump to buy is a tool used to transport the freshly mixed liquid concrete to the required location on the construction site. Mini concrete pumping machine works by using a valve system and hydraulics. So it can be used for the transportation of heat insulation lightweight foaming cement, mortar, and small aggregate concrete.

• Features of Trailer Type Mini Concrete Pump

  Parameter Features

  1. Its vertical pumping height ranges from 30 meters to 200 meters, which is suitable for your concrete pouring work for the high-rise building construction, bridge construction, 3-storey rural self-built house construction, and so on.

  2. The horizontal pumping distances of aimix mini concrete pumps can reach from 30 meters to 800 meters. Therefore, you can buy a small concrete pump for your tunnel pouring construction, reservoir pouring construction, indoor pouring construction, dam pouring construction, and so on.

  3. Compact concrete pump uses diesel powered engine so that it can help you to pump the concrete with faster speed and higher efficiency and shut down your labor intensity.

  Efficiency And Cost-Saving Characteristics

  4. One portable mini concrete pump can finish the work of 40 workers. In other words, you can save the labor cost to hire 40 workers if you buy one aimix mini concrete pump machine.

  5. Mini concrete pump beton can save you a lot of time to convey the finished concrete. Time is money. Thence, you need to buy a mini concrete pump equipment for your construction projects with long construction time and heavy workload.

  6. Aimix applies a large-capacity hopper for the concrete mini pump so that you can easily pump the coarse material and fine material.

  7. Mini cement pump for sale has two-wheel base so that you can easily transfer it from one site to another site by means of draging its hook. Besides, it also has several brackets wherefore you can fix it on the ground to start the pumping work.

  8. Concrete pump mini dijual can be used in small size construction sites that have not a very large demand for concrete, such as building construction in rural areas. With small floor occupation and relatively lower price, mini concrete pump machines provide a good choice for small size construction site investors.

• Mini Concrete Pump Applications

  As we all know, the pompa beton mini is mainly used for conveying ready-mixed concrete and directly pouring them to the construction site. It can be easily set at the roadside, the side of a foundation pit or the main building under construction so as to complete horizontal conveying, vertical conveying and remote pumping concrete. Hence, you can use our mini concrete pumping machine for many different construction scenes.

  1. It is suitable for building contractors in Indonesia to buy for the concrete pouring work, including the road paving construction, floor pouring for high-rise building, tunnel construction, foundation pouring construction, and so on.

  2. Mini concrete pump for sale can cooperate with a self-loading machine or a truck mixer to transport concrete for making prefab concrete products, such as precast concrete panels, precast slabs, and so on.

  For Making Prefab Products



  For Self-built House Construction






  For Road Guardrail Construction



  For Foundation Pouring Construction






  For Highway Construction



  For Tall-building Placing of Concrete

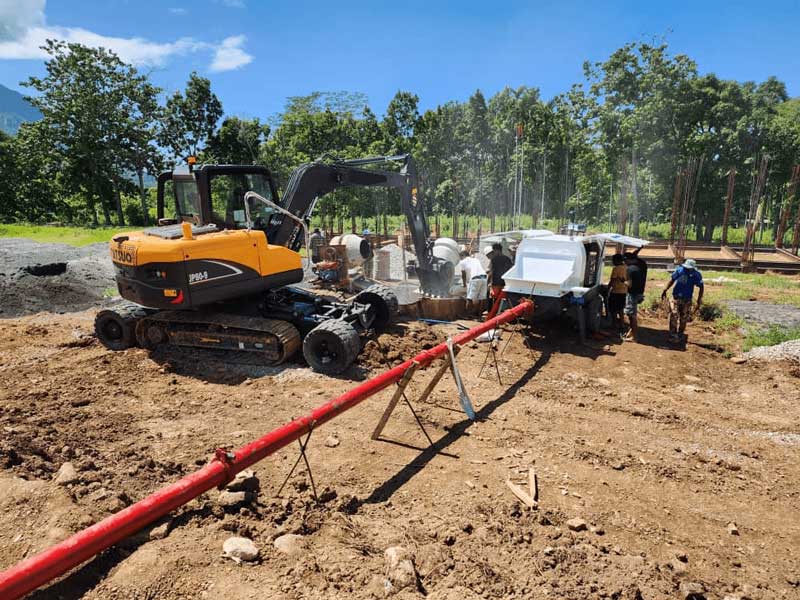

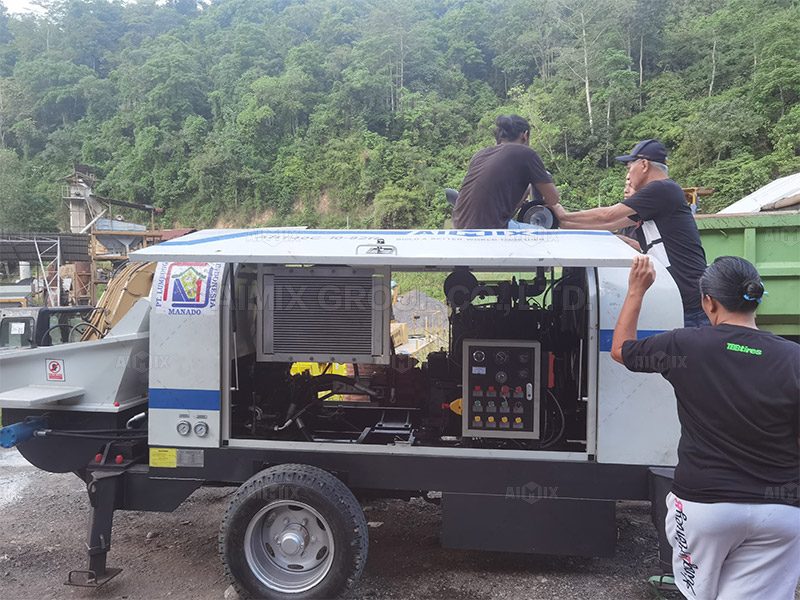

Customer Feedbacks of Trailer-type Mini Concrete Pumps

In 2019, Aimix begins to provide mini concrete pumps for sale directly in Indonesia. We have exported many sets of portable mini concrete pumps to Indonesia. The following are some videos and pictures of our concrete pump taken by our customers. Our customers speak highly of our products and service and they have sent us many good feedbacks.

40m3/h Concrete Pump Mini Dijual Working in Papua, Indonesia for 45 meters High Hotel Floor Pouring Construction

Hotel Opening on 22nd July 2022 in Papua, Indonesia(Hotel Built by ABT40C Portable Mini Concrete Pump)

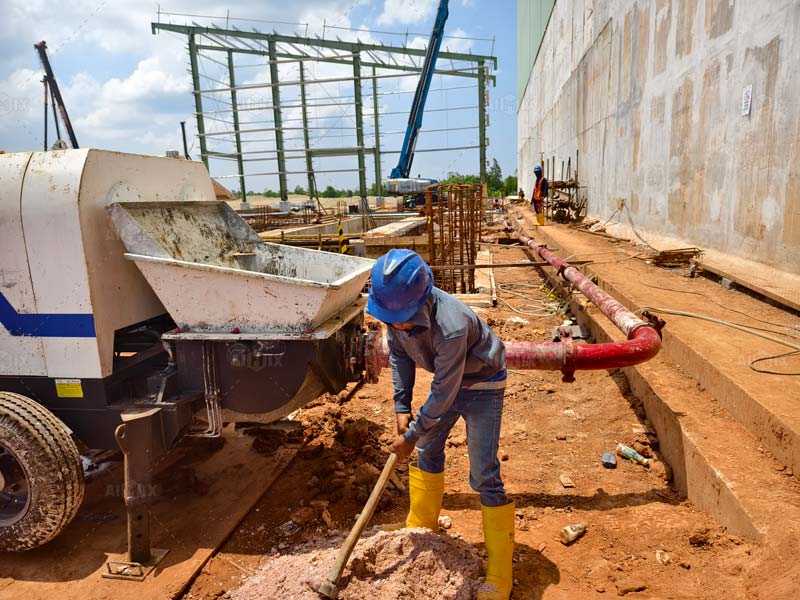

30m3/h Jual Pompa Mini Working in Manokwari, Papua, Indonesia for Foundation Pouring Construction

80m3/h Mini Concrete Pump Working for Tunnel Pouring Construction in Peru

40m3/h Mini Concrete Pump for Sale Working for Indoor Placing of Concrete in Uzbekistan

60m3/h Diesel Mini Concrete Pump Working for Floor Pouring Work for 13th Apartment in the Philippines

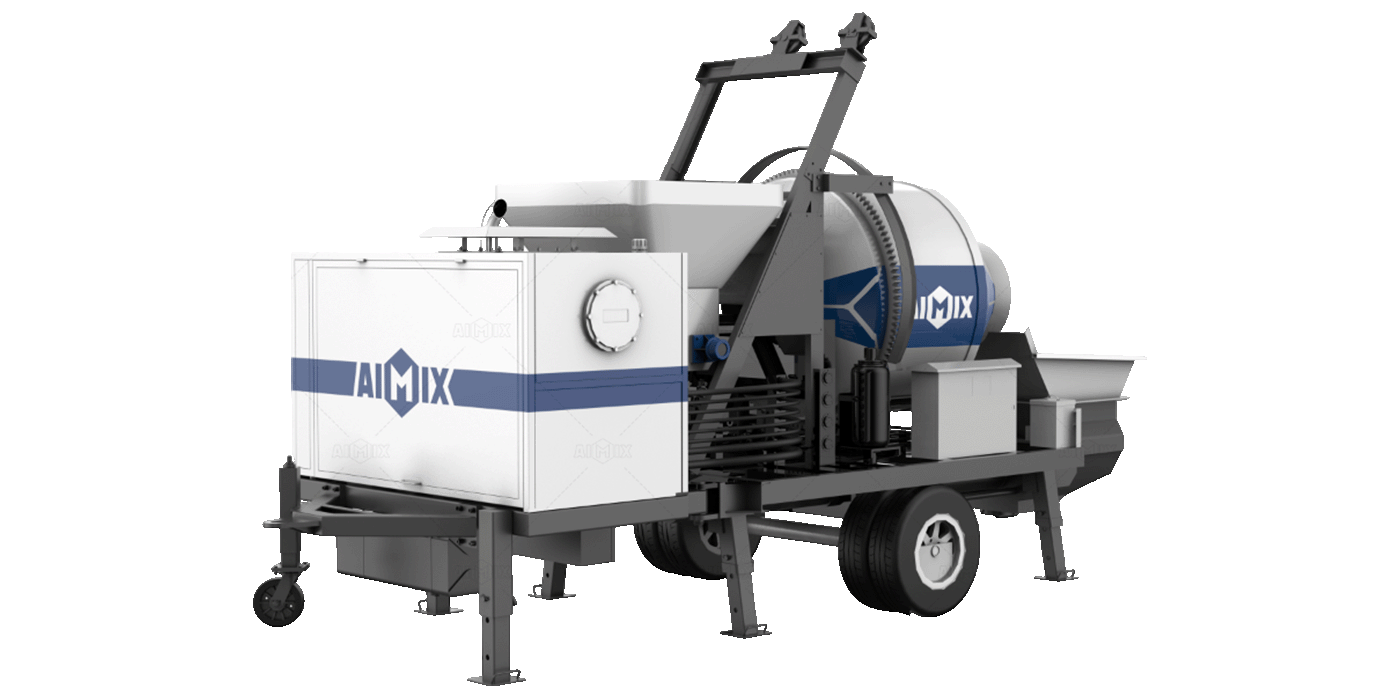

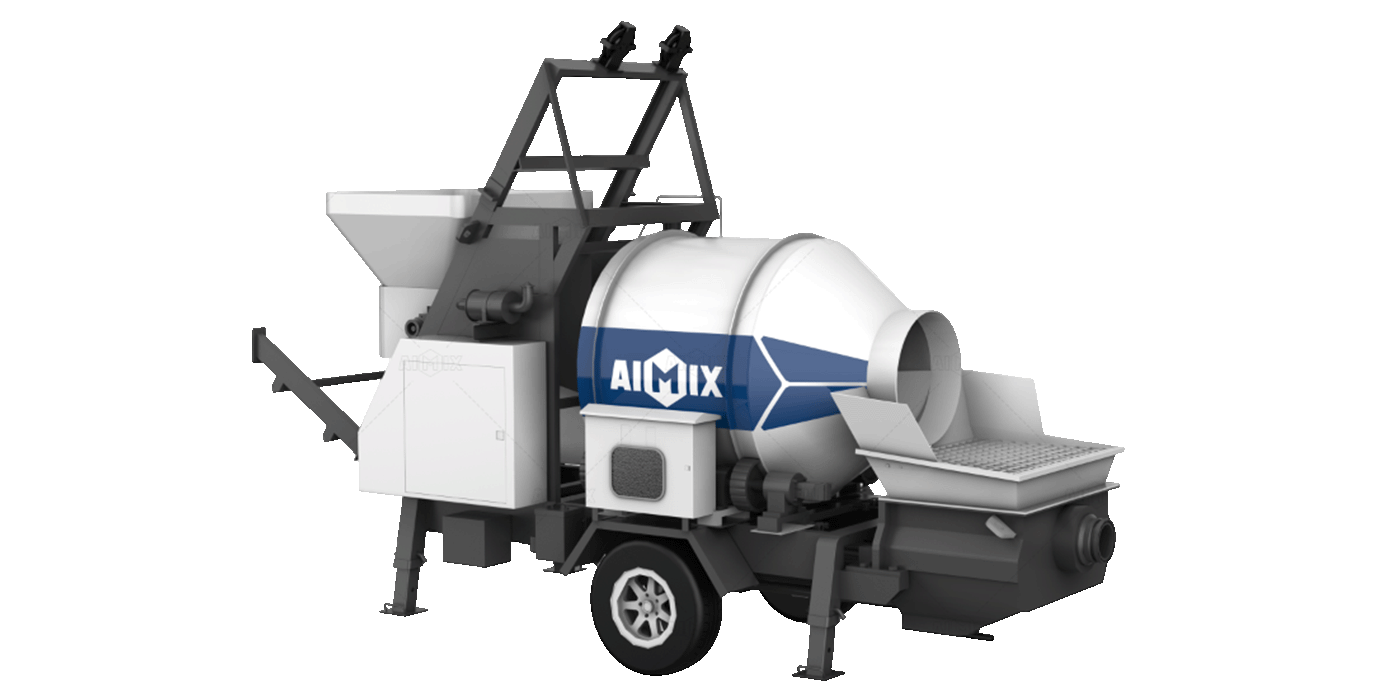

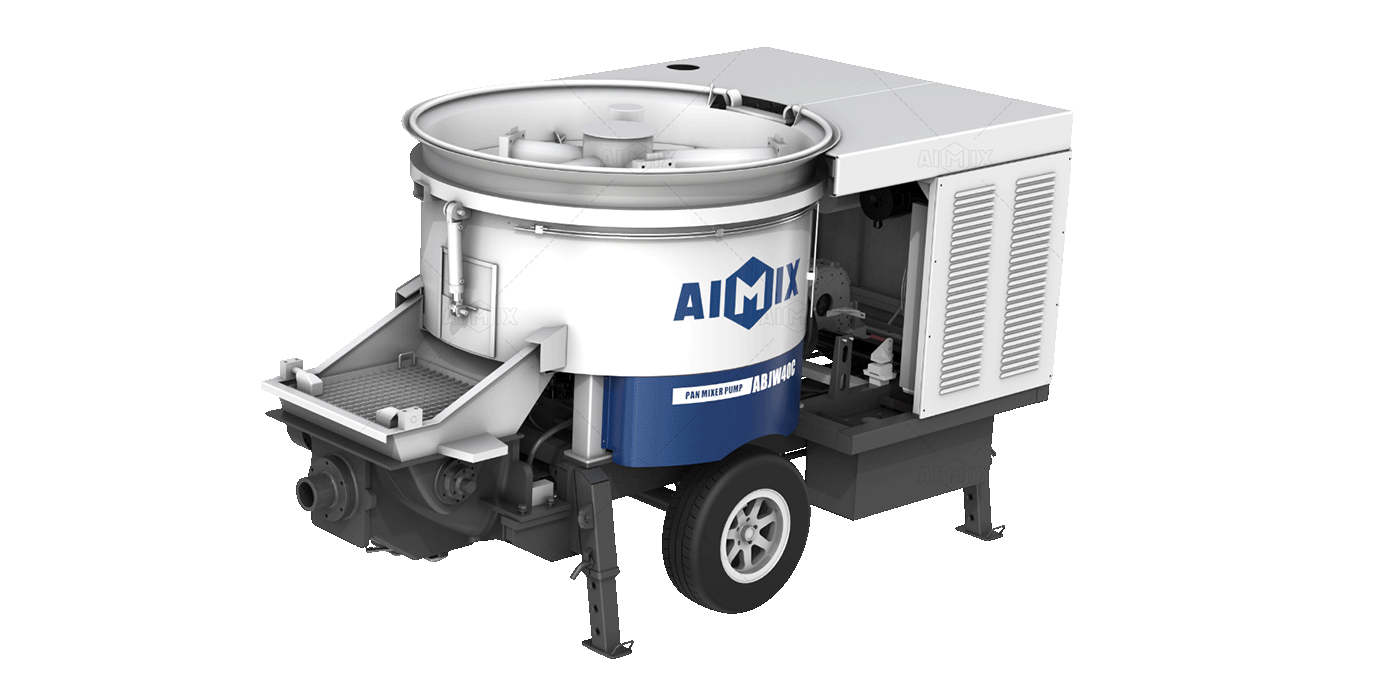

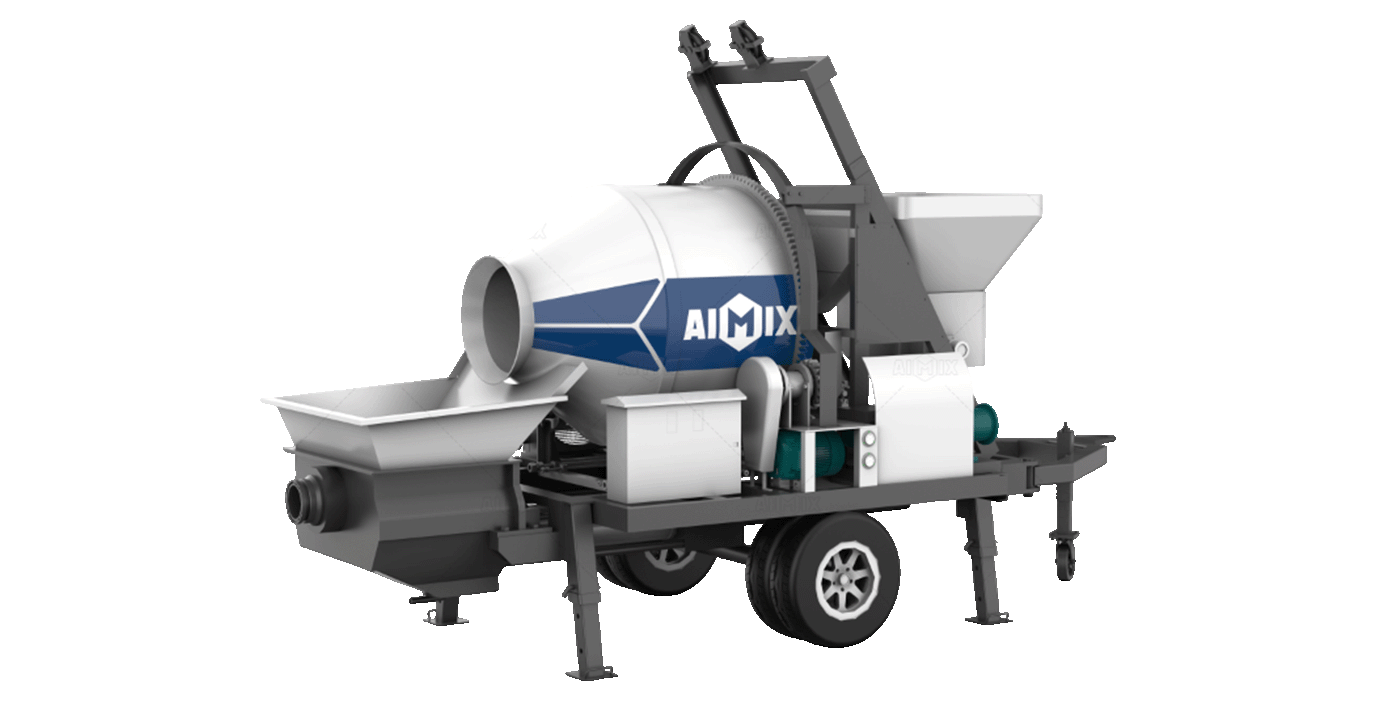

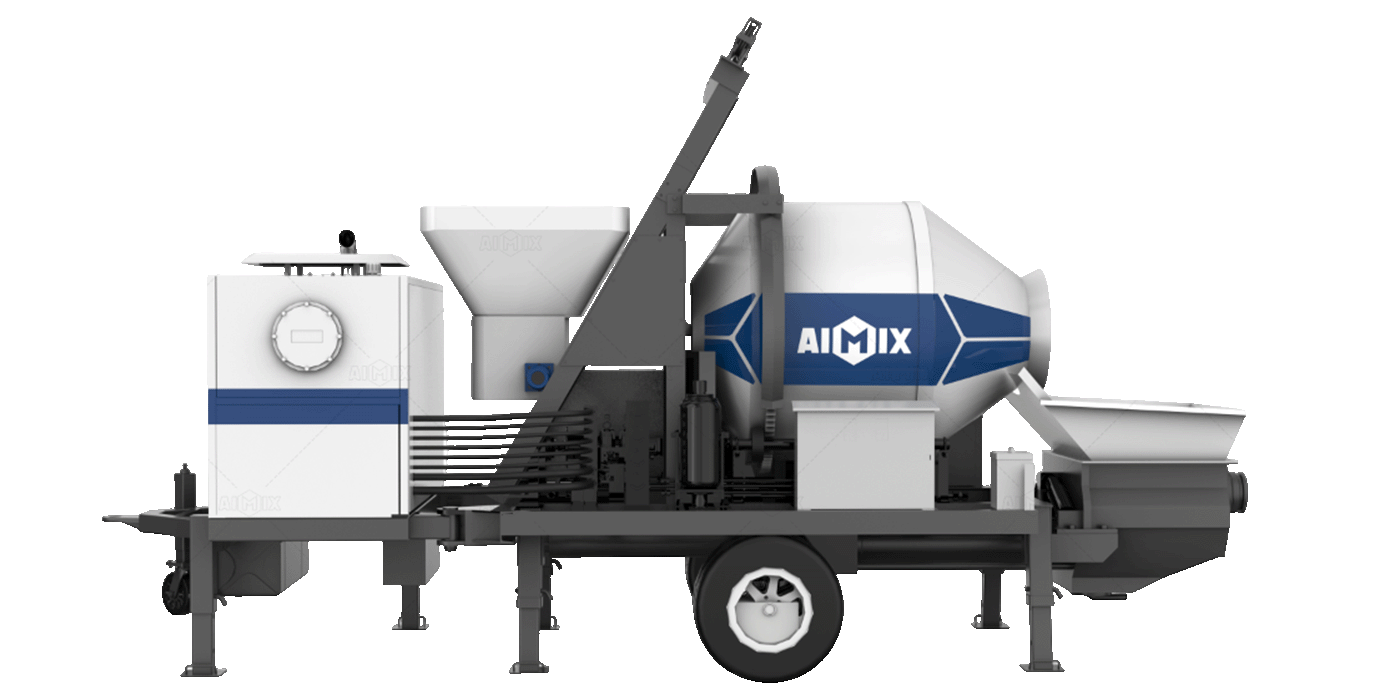

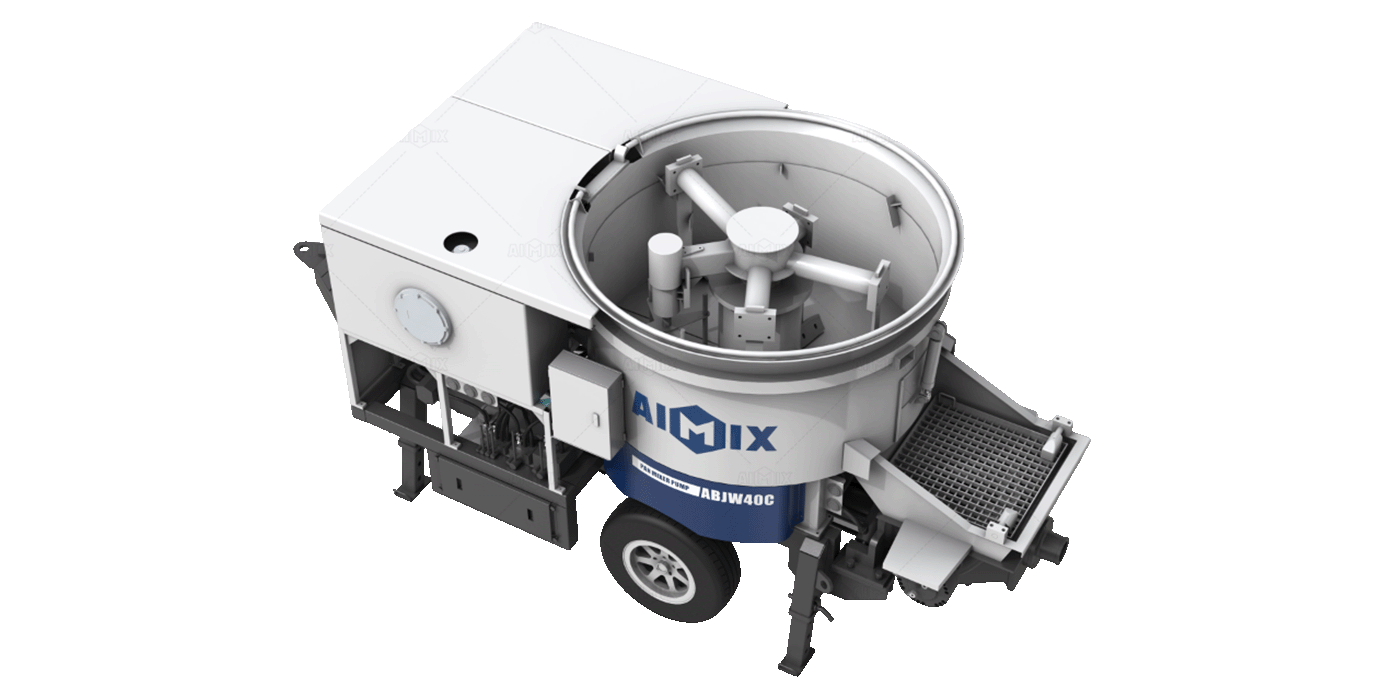

• Mixer-Type Mini Concrete Pump

  What is a mixer-type mini concrete pump? In AIMIX GROUP, a mini-type concrete mixing pump is made up of the lifting hopper, a mixing drum, the pump body, and the delivery pipes. It is integrated equipment that has both mixing functions and pumping functions in one unit. Wherefore you can use it to replace one concrete mixer and one concrete pumping machine.

• Features of Mixer-type Mini Concrete Mix Pump

  1. Mini concrete mixer and pump also has a two-wheel base and a hook so that you are capable of transfering it in a flexible way by means of a forklift at your sites. What is more, it is an ideal equipment for your small-sized self-built house buidling construction projects due to its portable features.

  2. In genearl, you will need to buy one concrete mixer plus one traler pump to do mixing and placing of concrete for your construction work. However, the mini concrete mixer with pumps for sale will save you a lot of money because it has both mixing and conveying functions at one unit.

  3. There are four frame supports so that you can set the whole machine at the ground and strat to work.

  4. Its automatic control system will help you save about 7-8 workers and labor cost. You will only need 4-5 workers to serve for the machine because it can complete self-weighing and self-loading aggregate materials, self-mixing concrete, self-discharging the ready made concrete to the hopper, and then self-pumping the concrete mortar to the working site.

  5. In addition to this, AIMIX applies high-level steel and parts to make the mini cement mixer with pump. So, it can serve you with longer service life, and shut down your maintenance cost.

• Mini-type Concrete Mixing Pump Applications

  Aimix multifunctional mini concrete mixer with pump for sale is widely applied to various kinds of construction projects due to its superior features. For example, making and pouring concrete for high-rise building construction, pouring concrete for the secondary structure, reservoir construction, harbor construction, hydropower station construction, rural house construction, and so on.

  For Dam Construction



  For Floor Paving Construction






  For Rural Self-built House Construction



  For Mountaion Road Paving Construction






  For Bridge Construction



  For Highway Construction

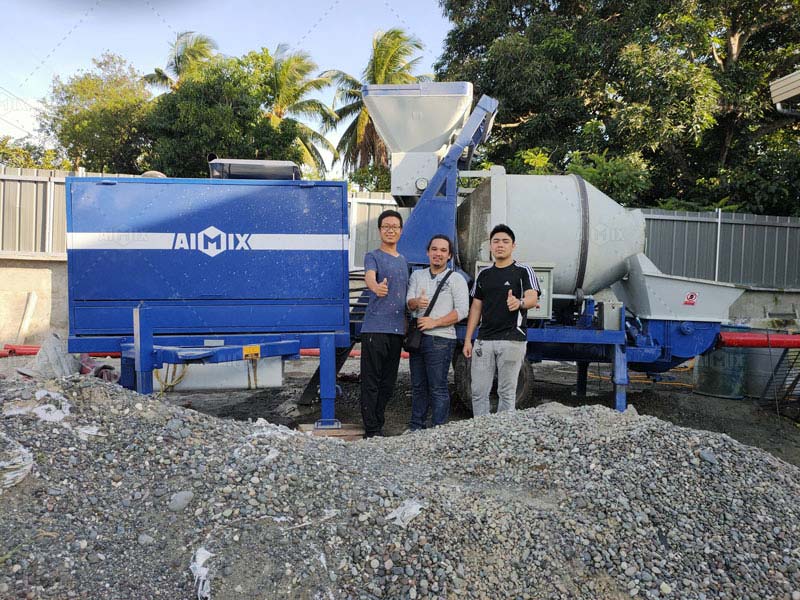

Customer Feedback of Mini-type Concrete Mix Pump

40m3/h Mini Concrete Mixer Pump Working for Dam Construction in Pangkal Pinang, Bangka Belitung Islands Province in Indonesia

40m3/h Mini Diesel Concrete Mixer Pump Working for Road Paving Construction in East Timor

40m3/h Mini Diesel Concrete Mixer and Pump Working for Ground Pouring Construction in the Philippines

Services of AIMIX GROUP in Indonesia

Until now, AIMIX has sold countless industrial equipment to Indonesia. Aimix has mature pre-sale and after-sale services so we have gained a lot of good praise and trust from our customers. If you are interested in aimix mini concrete pumps and the mini concrete pump price, please kindly let us know. And we will reply to you with full concrete mini pump specifications and harga concrete pump mini in Indonesia. Besides, I also list our services in Indonesia from the following aspects. We are confident to see the quality and harga pompa beton mini are worthwhile.

AIMIX Concrete Pump and Spare Parts in Stock in Indonesia

There is a warehouse and some goods in stock in the sites of our local agents. It will be very convenient for customers in Indonesia to buy our products such as concrete pumps. We have ABJZ40C diesel concrete mixer pump in stock and some spare parts of diesel concrete pump and self loading mixer. Customers can see these products and get them quickly. If there is a demand for spare parts, customers can also contact us and get spare parts quickly. It won’t delay customers’ construction work. The following are some pictures of them.

Detailed Specifications of AIMIX Mini Concrete Pump in Indonesia

Items		Units	Perameters	Perameters
			ABT40C	ABT60C
whole  performance of machine	Max. theo. concrete output(L./H)	M3/h	40/26	67/45
	Max.concrete pumping pressure(H./L.)	MPa	10/7.6	13/7
	Distribution valve type		S  Valve	S  Valve
	Concrete cylinder diameter×stroke	mm	Φ180×1200	Φ200×1650
	Hopper capacity x feeding height	L/mm	400/1100	800/1400
	Outlet diameter	mm	Φ150	Φ180
Power system	Diesel engine model		Weifang Delier 6105ZB	Wechai
	Electrical engineering power	KW	82	129
	Rotate speed	r/min	2100	2200
Hydraulic system	Circuit type		Open circuit	Open circuit
	Pumping system pressure	MPa	32	32
	Mixing system pressure	MPa	6-8	6-8
	Capacity of oil tank	L	370	370
Other parameters	Max. Theoretical Vertical/Horizontal Conveying Distance	m	120/500	180/800
	Max. aggregate diameter	mm	Slick/scree:40/50	Slick/scree:40/50
	Inside diameter of delivering pipe	mm	Φ125	Φ125
	Dimensions：length×width×height	mm	5000x1850x1700	5800x2000x1750
	Total weight	kg	4500	6500

Aimix Mini Concrete Pump Exported to Indonesia

We have exported many sets of mini concrete pumps to Indonesia. The following are some video and pictures of our pompa beton type mini applied to the construction projects of our Indonesia customer. We have large factory and workshop to produce concrete pump products quickly after receving the order. We welcome customers to visit our factory.

How Much Does a Mini Concrete Pump Cost?

AIMIX mini concrete pumps include diesel type and electric type. The diesel ones cost more than the electric ones with the same capacity. Our diesel type mini concrete pump machine price starts from 23000 USD, electric type mini concrete pump price starts from 15000 USD. The higher capacity, the higher price.

• 1. When a customer wants to buy a concrete pump, he will consider the quality of the concrete pump and the price of it at the same time. Aimix mini concrete pump price is relatively lower than other types of large concrete pumps. Since mini concrete pumps have a compact structure, they have price advantage over other concrete pumps in large sizes. Therefore, mini concrete pumps are the best choice for construction investors who have small demand for concrete transportation. Choosing a mini-size concrete pump is both practical and economic for them. It won’t waste cost to some degree.
• 2. Aimix provides mini concrete pumps at reasonable price. Our engineers have been focused on the research and development of concrete pumps for many years. They make efforts to improve the performance of concrete pumps, optimize the machine design and reduce the cost. In a word, Aimix mini concrete pump prices are reasonable and competitive.
• 3. If you want to know harga concrete pump mini, then you should first tell us what project you are gonna use the mini pump for, how much concrete output you require for your daily use, what mini concrete pump capacity you want, which city you want to buy a mini concrete pump machine for sale for, and other details. Afterward, our sales team can recommend you with the right model and size, and give you the harga mesin concrete pump mini in Indonesia.

Features Of Aimix Mini Concrete Pump for Sale in Indonesia

1. Using advanced smooth s pipe valve reversing: it can meet the demand for transportation of fine stone concrete or commercial fine stone concrete, avoid pipe block problem;
2. Spectacle plate and cutting ring: high hardness and wear-resistant alloy material, longer life;
3. The hydraulic oil cooling adopts air cooling system: the cooling effect is good, simple to use, and not easy to pollute the oil;
4. Adopt five-level manual variable displacement: it can meet the different requirements of many users for the discharge speed;
5. Advanced wireless remote control function: Improve remote control distance, facilitate remote control operation, and make products more humanized;
6. Highly wear-resistant concrete cylinder: guarantees and increases the service life of the concrete pump and reduces the maintenance cost;

FAQ

Why is Mini Concrete Pump Required?

The use of mini concrete pump allows builders to complete concrete pouring work on construction sites much easier, thus finishing your project much faster. Using of mini cement pump compared to traditional ways of concrete pouring required less time and human labor.

How Do Mini Concrete Pumps Work?

• Concrete pump adopts motor or diesel engine to drive the pumping system and through the hydraulic system with constant power. The concrete pump equipment working principle is like this. When starting, the stirring pump drives the hydraulic through the motor and the hydraulic pump drives the hydraulic cylinder, thus the piston in the conveying cylinder is pushed to perform the alternating movement of “pushing and sucking” alternatively.
• The piston is respectively connected with the main cylinder piston rod and under the action of the master cylinder hydraulic oil it does reciprocating motion: one cylinder forward, then the other back. The outlet of the concrete tank is connected with the hopper and one end of the distributing valve is connected with the material outlet at the same time the other end is connected with the swinging arm through the spline shaft so it can swing left and right under the influence of swinging cylinder.
• Keeping repeating like this, the hopper of the concrete pump on a steady stream of suction and pressure sends the concrete through the Y pipe and outlet connected pipe to reach the operating point thus complete the pumping operations.

What Are the Advantages of Using the Mini Concrete Pump?

• Concrete pumping is a faster and easier way to complete the project.
• Mini concrete pump can reduce labor costs.
• Due to the small number of construction personnel, the congestion on the construction site is reduced.
• You can transport concrete to high places and far-reaching places easily.
• Mini concrete pumps can pump the concrete before the concrete is solidified to improve the strength of the concrete.
• The pipeline can travel anywhere as you want.
• It provides a stable work rhythm and improves productivity.
• Multiple pumps can be used at the same time for large projects.
• Suitable for many types of projects, including residential and commercial, effective and economical.
• A wide range of concrete pumping applications, including foundations, floors, pillars, bridges, and dams.

When Should You Use a Mini Concrete Pump?

The main purpose of using a mini concrete pumps is to save time, money and energy in small concrete projects. There is no need to transport the concrete to the desired location, the pump pipe allows you to place the concrete exactly where you need it, regardless of obstacles on the way.

Do I Need Mini Concrete Pump?

Concrete pumps transport wet mixed concrete from the mixer to the pour location. A concrete pump is ideal for jobs where access restriction is a problem, for example, If the mixer can’t get close enough to pour the concrete into the required location. If you want to pour concrete to far or high places, you might need a mini concrete pump.

What Type of Pump is Best for Concrete?

Truck-mounted concrete pumps are most suitable for the construction of large highways and expressway projects. For multi-height concrete pouring, where the concrete pouring area is limited, boom-type concrete pumps are the best choice. For small concrete projects such as house building, mini concrete pump will be a good choice. Consequently, we can’t say which one is the best. We should choose one according to the real demand.
