Cone Crusher For Sale In Indonesia

What is a cone crusher used for? Here is the cone crusher definition. A Cone crusher for sale in Indonesia manufactured by AIMIX Group is a machine that crushes material by squeezing or compressing the feed material between a moving piece of steel and a stationary piece of steel. The crushed material is discharged at the bottom of the machine after they pass through the cavity.

They are suitable for the crushing of raw materials in the metallurgy, construction, road construction, chemical, and silicate industries. They are widely used in mining, smelting, building materials, highways, railways, water conservancy, chemical industries, and many other sectors. since standard cone crusher has a large crushing ratio, high efficiency, low energy consumption, uniform product size, they are suitable for medium and fine crushing of various ores and rocks.

Many people may ask where can I find the rock crusher cone for sale near me in Indonesia? Here AIMIX Group provides customers in Indonesia with many hot types of these secondary crushers. They have high quality, reliable performance, and reasonable cone crusher machine prices.

Classification Of Cone Crushers

With the continuous development of mining technology, cone crushers for sale are developed into several cone crusher types, including spring cone crusher, hydraulic cone crusher, and compound cone crusher. According to the model, it is divided into ordinary PY cone crusher, Symons cone crusher for sale, compound cone crusher, standard hydraulic cone crusher, single-cylinder hydraulic cone crusher, and multi-cylinder hydraulic cone crusher. And these cone type crushers are usually used for stationary crushing plants or mobile crusher plants.

It should be pointed out that the hydraulic cone crusher is developed on the basis of digesting and absorbing various types of cone rock crusher machines with international advanced technology in the 1980s in various countries. It is obviously different in design from the traditional cone crusher, and it concentrates the main advantages of various types of cone crusher machines known so far. It is suitable for fine crushing and superfine crushing of hard rocks, ore, slag, refractory materials, etc. Therefore, it is also called a secondary cone crusher.

AIMIX hot types cone crushers for sale mainly include PYB series spring cone crusher, CS series single cylinder hydraulic cone crusher, CP series multi cylinder hydraulic cone crushing machine, and CSV series compound cone crusher. Next we will introduce the above hot cone crushers in detail.

CP Series Multi Cylinder Hydraulic Cone Crusher For Sale In Indonesia

The multi-cylinder hydrocone crusher is suitable for crushing various ores and rocks of medium and above medium hardness, such as limestone, iron ore, cobblestone, non-ferrous metal ore, granite, basalt, limestone, quartzite and sandstone. Its high-speed, high-crushing cone crusher capacity design makes the crushed product have a high-quality cube shape, and the easy maintenance feature ensures that tertiary crushers can work with higher stability. The multi-cylinder crusher cone is one of the most commonly used cone crushers for customers. The price of cone crusher is relatively affordable, the cone crusher output size is large, and it can meet the production requirements.

Specification of Multi Cylinder Hydraulic Cone Crusher:

model	Cavity	Maximum feed size(mm)	Minimum discharge opening size(mm)	Motor Power(kW)	Closed Edge Material- discharging Port( mm) Output(TPH)									Weight (kg)
					13	16	19	22	25	32	38	45	51
CP100	C	135	16	75-110		75-85	85-95	85-100	90-110	100-130				6800
	M	105	16	75-110		55-70	65-80	70-85	75-95	90-110
CP200	C	185	19	110-160				180-210	220-240	235-270	265-310			12000
	M	145	17	110-160			145-165	160-195	185-220	210-245	230-280
	F	70	13	110-160	90-110	105-125	120-135	125-140	130-150	140-165
CP300	C	210	22	185-220			210-240	230-180	270-320	290-350	360-430			18700
	M	185	19	185-220			190-220	205-230	225-260	245-285	300-350
	F	90	16	185-220		135-155	150-170	165-185	180-200	200-220
CP400	C	290	25	220-315					295-355	335-375	430-500	470-550		28400
	M	210	22	220-315			265-340	290-330	315-360	350-410
	F	110	16	220-315		155-185	175-200	195-225	210-245	235-256

Features of Aimix Multi-Cylinder Cone Crusher for Sale In Indonesia

1. Fixed-axis structure design, large crushing force, low equipment foundation investment
2. Laminated crushing cavity design, uniform product size, cubic shape, low energy consumption
3. The fully automatic control system of PLC+touch screen ensures the safe cone crusher operation
4. Equipped with remote touch screen operation interface to display real-time working of cone crusher status
5. The wall of the rolling mortar does not need fillers, and the replacement is quick and easy
6. All cone crusher parts can be disassembled from the top and side, which is convenient for equipment maintenance
7. Hydraulic motor to adjust the discharge opening is easy to adjust and operate
8. Hydraulic lubrication combined oil station, small size, simple wiring

AIMIX Multi cylinder Hydraulic Cone Crusher 3D Simulation Video

The following is a cone crusher diagram and 3D simulation video of aimix multi cylinder hydraulic cone crusher. You will have a better knowledge of this kind hydraulic cone crusher after watching this cone crusher video.

High-efficiency hydraulic cone crusher has the world’s advanced level of high-energy crusher. It is a perfect combination of crushing speed, eccentricity (stroke), and high-performance crushing cavity design. It not only improves the production capacity and crushing efficiency, but also expands the scope of application.

From limestone to basalt, from stone production to various ore crushing, it can provide unparalleled crushing performance in various medium, fine, and ultra-fine crushing operations. Compared with the jaw crushers, it has high speed, high crushing capacity, and unique patented design makes the crushed finished product have an extremely high-quality cube shape, and the easy-maintenance feature can ensure extraordinary high-stability operation.

AIMIX hydraulic cone crushers mainly include single cylinder hydraulic cone crusher and multi-cylinder hydraulic cone crusher. AIMIX single cylinder hydraulic cone crushers mainly include CS820, CS830, CS840, CS860. Multi-cylinder hydraulic cone crushers mainly include CP100 tph cone crusher price, CP200, CP300, CP400. The detailed information of them is as follows.

CS Series Single Cylinder Hydraulic Cone Crusher For Sale In Indonesia

More Hot Types of Single Cylinder Cone Crusher for Sale In Indonesia:

Model	Power	Cavity Type	Max feeding	Through put (t/h) if crusher running at CSS (mm)
	(kw)		size (mm)	16	19	22	25	29	32	35	38	41	44	48	51
CS840	250	EC	450							273	323	345	356	421	447
		C	400						291	335	363	395	415	421	375
CS860	315	EC	560								385	464	535	621	647
		C	500							335	418	535	620	660	683

Features of Single Cylinder Cone Crusher:

1. Simple structure, strong reliability, easy maintenance, low cost for operation
2. Large production capacity, high crushing efficiency, low energy consumption
3. Combination of multiple cavity types to adapt to multiple particle size requirements
4. The automatic control system of PLC+touch screen ensures the safe operation of the equipment

Here is the cone crusher animation in the following.

PYB series Spring Cone Crusher For Sale In Indonesia

The spring cone crusher is the earliest cone crusher, and it is an advanced cone crusher symons with high power, large crushing ratio and high productivity. In the secondary or tertiary cone crusher, when unbreakable foreign matter passes through the crushing cavity or the machine is overloaded for some reason, the spring safety system of the spring cone crusher realizes insurance and increases the discharge port of ore.

The foreign obstacles are discharged from the crushing cavity. If the foreign obstacles are stuck in the discharge port, the cavity cleaning system is used to make the discharge port continue to increase and the foreign matter is discharged from the crushing cavity. Under the action of the spring, the discharge port is automatically reset, and the spring cone crusher resumes normal operation.

Features of Aimix Spring Cone Crusher For Sale In Indonesia:

1. Overload Protection: Spring system for overload protection, no damage to the machine.
2. Reliable Operation: Adopted grease seal to isolate dust and lubricants, ensure reliable operation.
3. Multiple Heads to Choose, wider Application: Standard type, medium type and short head type to choose.

CSV Series Compound Cone Crusher for Sale In Indonesia:

What is compound cone crusher? The compound cone crusher is called compound crusher for short. It has the dual functions of fine crushing and coarse grinding. The internal structure is innovatively designed, and its crushing ratio is large. It is not easy to be blocked when processing materials with high moisture content and large mud content. The structure can easily replace the wearing parts when the working warehouse door is opened. The stone cone crusher machine is suitable for all kinds of medium hardness materials, especially for hard limestone, dolomite, granite, basalt, and other artificial sand or highway pavement stone processing and crushing Hence, it is widely used for stone crusher machines.

Features Of CSV Series Compound Cone Crusher for Sale:

1. Large crushing ratio: The composite crusher machine has a large crushing ratio, which is more ideal for processing materials with high moisture content. Because there is no grate inside, it is less affected by the moisture content of the material, and the moisture content can reach about 8%.
2. Automatically adjust the discharge: The discharging granularity can be adjusted arbitrarily, there is no screen bar setting, the material with a large amount of silt will not be blocked, and the non-breakable material can be automatically discharged when entering the machine body, and will not cause damage to the equipment.
3. Low failure rate, reducing maintenance cost: The stationary/portable cone crusher for sale has high crushing production efficiency, stable structure operation, low noise and convenient maintenance. The vulnerable parts can be replaced by opening the working warehouse door.
4. Green and environmental protection: During operation, the working noise is low (<75 decibels), the sealing is good, and there is a dust removal device to eliminate dust pollution and meet environmental protection standards.

Cone Crusher Specifications of CSV Compound Cone Crusher for Sale

Model	Cavity	Max. Feed Size (mm)	Min. Discharge Port Size(mm)	Power (kW)	Closed Edge Material- discharging Port( mm) Output(TPH)
					6	10	13	16	19	22	25	38	51	64
CSV110	C	160	13	110			80	100	135	150	175	235
	M	115	10			65	75	90	120	135	150
	F	80	8		50	55	65	70	95
	EF	50	6		52	62	72	78	102
CSV132	C	180	13	132			115	135	150	180	200	260
	M	130	10			100	110	120	135	165	175
	F	90	10			80	105	110	140
	EF	60	6		60	74	105	110	130
CSV160	C	200	16	160				150	180	200	230	310	390
	M	150	13				115	140	160	190	210
	F	102	10			90	115	145	160
	EF	70	8			88	110	135	155
CSV200	C	215	19	200					200	220	260	330	420
	M	160	16					155	180	200	220
	F	115	13				150	190	210	230
	EF	76	6			122	148	185	200
CSV250	C	235	22	250					240	265	300	400	510	570
	M	175	19						215	240	265	320
	F	130	13				180	210	235	255	275
	EF	90	10			148	178	220	265

Brief Introduction Of Graval Cone Crusher Components

The main components of gravel cone crusher include frame, horizontal shaft, moving cone, balance wheel, eccentric sleeve, upper crushing wall (fixed cone), lower crushing wall (moving cone), hydraulic coupling, lubrication system, hydraulic system.

What Is The Working Principle Of Cone Crusher?

How cone crusher works? Many people may ask compound cone crusher working principle. In the working process of the cone crusher, the motor drives the eccentric sleeve to rotate through the transmission device, and the moving cone rotates and swings under the forced movement of the eccentric shaft sleeve. The static cone is broken by multiple squeezing and impacts. When the moving cone leaves this section, the material that has been crushed to the required particle size there falls under its own gravity and is discharged from the bottom of the cone. This is just the tracked cone crusher operating principle. Then you can know how a cone crusher works.

Technical Advantages Of AIMIX Cone Crusher For Sale In Indonesia

1. 1

   Large crushing ratio and high production efficiency: Combining higher speed and stroke, the stationary/portable cone crusher’s rated power and passing capacity are greatly improved, and the crushing ratio and production efficiency are improved. The hydraulic cone crusher is designed with a perfect combination of crushing stroke, crushing speed, and crushing cavity shape.

2. 2

   Low consumption of wearing parts and low operating cost: Reasonable structure, advanced crushing principle, and technical parameters, reliable operation, low operating cost; all parts of the crusher are protected against wear, reducing maintenance costs to the minimum, and general service life can be increased by more than 30%.

3. 3

   Laminated crushing, excellent grain shape of the finished product: By adopting the special crushing cavity designed by the principle of inter-particle lamination and the matching speed, it replaces the traditional single-particle crushing principle to realize the selective crushing of materials and significantly improves the product fine material ratio and cube content in a limestone crushing plant. The needle-like material is reduced to a large extent.

4. 4

   Hydraulic protection and hydraulic cavity clearing, high degree of automation, reduce downtime: Hydraulic adjustment of the discharge opening and overload protection greatly improve the operation level of the crusher, making maintenance easier, more convenient to operate, and shorter downtime; the bidirectional iron-passing release hydraulic cylinder can allow iron blocks to pass through in the crushing cavity, the machine can hydraulically lift and discharge the material in the case of iron and instantaneous stuffiness, which greatly reduces the trouble that the original spring cone crusher has to be stopped for manual discharge.

5. 5

   Thin-oil lubrication, reliable and advanced, improve the service life: Unique thin oil lubrication system design greatly improves the service life of the fine cone crusher. The high-performance non-contact labyrinth seals are wear-free, improve the reliability of blocking dust, and fundamentally eliminate common failures such as the oil-water mixing of the original spring cone crusher.

6. 6

   Easy maintenance, convenient operation, and use:All parts of the cone crusher can be disassembled and maintained from the top or side. The movable cone and the fixed cone are easy to disassemble, without disassembly and assembly of the frame and fastening bolts, so the daily replacement of the liner of the stone cone crusher is more convenient. The hydraulic motor is used to optimize the production efficiency of the crusher.

7. 7

   It provides higher production capacity, the best product shape, and is easy to be automatically controlled, with maximum reliability and flexibility, and truly creates more value for users. All in all, they are the advantages of cone crusher.

AIMIX Stone Crusher Equipment Export Cases

AIMIX Cone Crusher Application Case in Uzbekistan

This is a case of AIMIX cone crusher applied in a 200ton crusher plant in Uzbekistan.

AIMIX Cone Crusher Application Case In Tashkent

This is the test run video of AIMIX 200-250 Ton Crushing Plant working in Tashkent.

How manufacturers Reduce the Cone Crusher Operating Cost

The operating cost of the cone crusher has an important impact on the economic benefits of the enterprise. How to reduce the operating cost of the stationary/mobile cone crusher plant has always been a problem of great concern to customers. For this reason, in order to solve the problem that the operation of the rock cone crusher plant has become too high, the structure of the rock cone crusher has been optimized and improved. Through the introduction of advanced technical experience at home and abroad, the conversion of the high operation rate of the rock cone crusher has been realized. By Improving the quality of wearing parts, reducing the failure rate and maintenance costs, cone crusher suppliers greatly reduce the operating cost, and the cone crusher price is more and more favorable.

How Much Does a Cone Crusher Cost

AIMIX hot type cone crushers mainly include spring cone crusher, single-cylinder hydraulic cone crusher, and mutli-cylinder hydraulic cone crusher, aggregate cone crushers. For the same kind of gravel crusher cones for sale, the cost ranges according to the capacities. The larger the capacity is, the higher the price is. Generally speaking, spring cone crusher cost starts from 23,880 USD, single-cylinder hydraulic cone crusher starts from 58,310 USD, mutli-cylinder hydraulic cone crusher starts from 61,490 USD. The prices above just include the crusher machine, they don’t include other fees such as transportation etc.

Type	Minimum Price
spring cone crusher	23,880 USD
single-cylinder hydraulic cone crusher	58,310 USD
mutli-cylinder hydraulic cone crusher	61,490 USD

Where to Find Cone Crusher Manufacturers in Indonesia

As one of the experienced cone crusher manufacturers, AIMIX is a large-scale mining cone crusher manufacturer integrating scientific research, production, and sales. Every order is delivered in a timely and effective manner. Welcome to visit our factory. We, as one of outstanding cone crusher exporters, have a complete service team and reasonable price equipment for each partner. Spot direct sales, no intermediate link costs, now come to the factory for inspection and purchase, and you can also enjoy ex-factory price discounts. For the specific cone crusher price, you can click on the online free consultation at any time. The technical manager will serve you, and you can enjoy various services such as installation, commissioning, post-repair, and cone crusher maintenance manual.

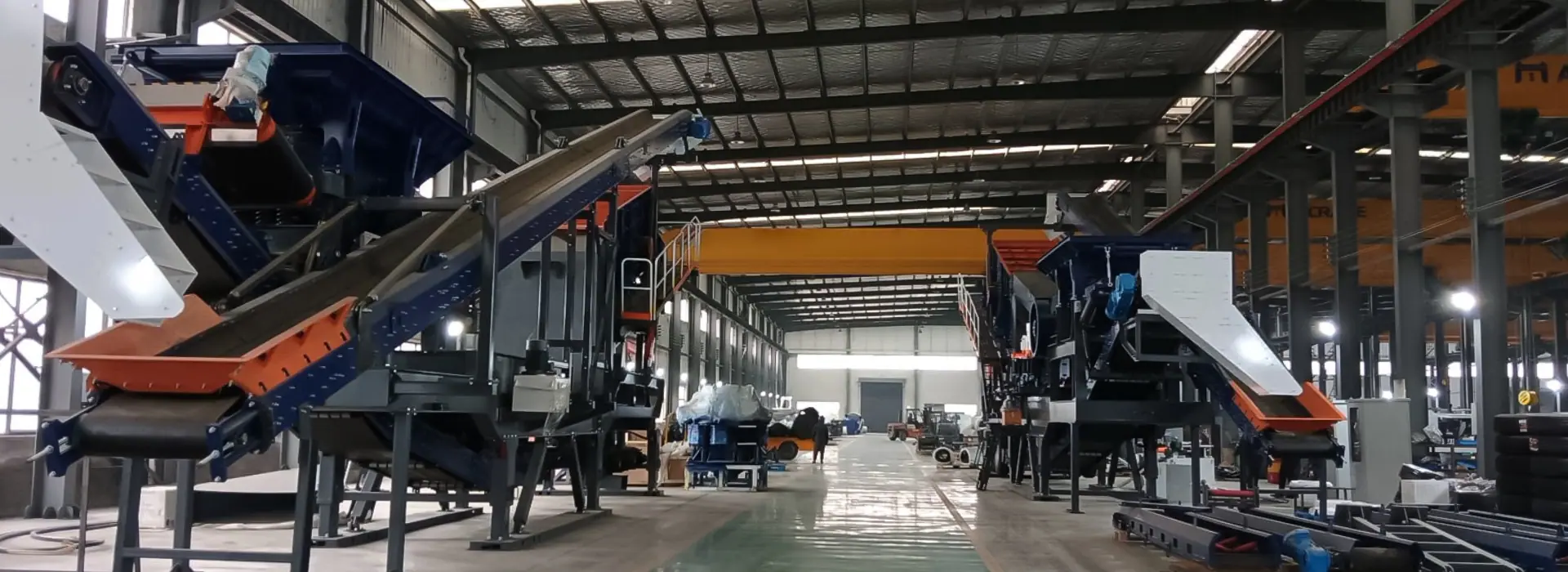

AIMIX Workshop Overview

For more than 40 years of hard work, AIMIX has a large-scale production plant of 60,000 square meters. We have professional core production technology for rock cone crushers, and has a complete factory system. The following picture is taken in our workshop.

FAQs: Difference Between Cone Crusher and Impact Crusher

• Q: What is the main difference between a cone crusher and an impact crusher?
  A: Cone crushers crush using compression, while impact crushers use impact force.
• Q: Which type of crusher is better for hard materials?
  A: Cone crushers are better for hard, abrasive materials.
• Q: How do product shapes differ?
  A: Cone crushers produce more cubical shapes; impact crushers produce more irregular shapes.

FAQs: How to Use a Cone Crusher

Q: How do you operate a cone crusher?
A:

1. Prepare the crusher and clear debris.
2. Feed material consistently.
3. Adjust settings for desired size.
4. Monitor operation.
5. Perform regular maintenance.

Q: What should you avoid when using a cone crusher?
A: Avoid overloading the crusher, feeding it with wet or sticky materials, and running the crusher with worn or damaged parts. These can lead to inefficiency and mechanical issues.

FAQs: What is a Crusher Cone Made Of

Q: What are crusher cones made of?
A: Crusher cones are made of high manganese steel for durability and wear resistance. Some may also use alloy elements like chromium or nickel.

Advantages of Choosing AIMIX In Indonesia

1. Quality Ensured: more than 40 Years Experience,cooperated with the world Famous cone crusher brands: Lafarge Group(WORLD TOP 500) l With CE, ISO9001 certificates , and through BV, SGS test.Exported to over 100 countries and get highly appraisedby our clients.
2. Service Ensured: Professional Engineers team with APEC and injected Vaccine l with 6 Oversea office in Philippines, Sri Lanka, Indonesia,Mylasia,Uzbekistan and Pakistan…supply the local cone crusher spare parts ,local engineers and maintance for free l Warehouse in Pakistan, Uzbekistan directly offer equipment l Any time anywhere, you have a TEAM here offer support on Technology, Manufacture.
3. Other Service:12 months warranty from date of delivery; Accept OEM, accept customers’ special design requests

If you are interested in any type of our stationary/mobile cone crusher for sale in Indonesia, welcome to contact us now! just leave your message in the form below or call us directly! Our sales in Indonesia will provide you with the most suitable solution, fast and reliable service. Just contact us and buy cone crusher now!
