Small Concrete Mixer

As a construction machinery manufacturer serving customers all over the world, AIMIX provides various small concrete mixers for sale in Indonesia in electric and diesel types. Small concrete mixer for sale by AIMIX is often used as a stand-alone machine. Its mixing efficiency is lower than large concrete mixers such as JS twin shaft concrete mixers. A small concrete mixer is mainly suitable for rural construction and small construction sites. Since the small concrete mixers have a compact structure, they can be moved at any time.

Small Concrete Mixers AIMIX Provides in Indonesia

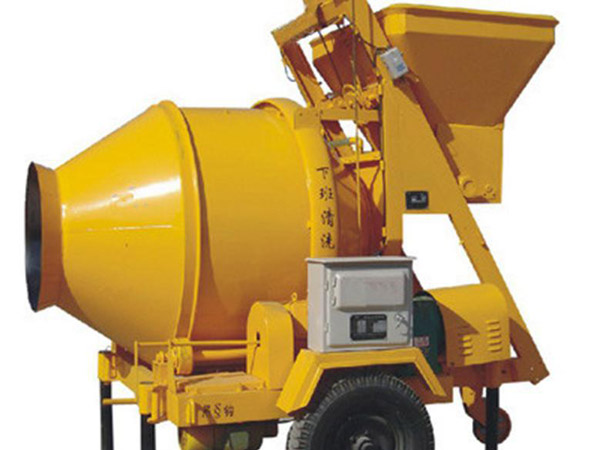

AIMIX small concrete mixer mainly include JZ series concrete mixers and AS series concrete mixers. With low power consumption, easy operation, small cement mixers got customers’ favor whose construction sites are small such as rural towns. The small concrete mixers for sale produced by AIMIX are JZC350 drum concrete mixer, JZC500 concrete mixer, JZM350 concrete mixer, JZC500 concrete mixer, JZR350 concrete mixer, JZR500 concrete mixer, AS1.2 self loading small concrete mixer, AS1.8 self-load concrete mixer. The above eight types are widely used in general construction sites, roads, bridges, hydropower, and other projects, especially in the vast rural market.

Item	Charging Capacity (L)	Discharging Capacity (L)	Productivity (m3/h)	Aggregate Size (cobble/gravel) (mm)	Overall Dimension (LxWxH) (mm)	Overall Weight (kg)
JZC350	560	350	10-14	60	4010X2140X3340	1610
JZC350B	560	350	10-14	60	4310X2140X4180	1610
JZC500	800	500	18-20	60	5230X2300X5450	3200

Output and Production Volume of AIMIX Small Concrete Mixer Indonesia

The JZC350, JZM350 small cement mixer has a discharge capacity of 350 liters and an hourly production capacity of 10-14m³/h. The JZR350 small concrete mixer has a discharge capacity of 350 liters and an hourly production capacity of 10-14m³/h.

Item	Charging Capacity (L)	Discharging Capacity (L)	Productivity (m3/h)	Aggregate Size (cobble/gravel) (mm)	Overall Dimension (LxWxH) (mm)	Overall Weight (kg)
JZM350	560	350	10-14	60	4310X2140X4240	3200
JZM500	800	500	18-20	60	5130X2400X5550	3200
JZM750	1200	750	20-22.5	60	6107X2050X6070	4000

The JZC500, JZM500, JZR500 small concrete mixer has a discharge capacity of 500 liters and an hourly production capacity of 10-20m³/h. The discharge capacity of the JZM750 small concrete mixer is 750 liters, and the hourly production capacity is 20-30m³/h.

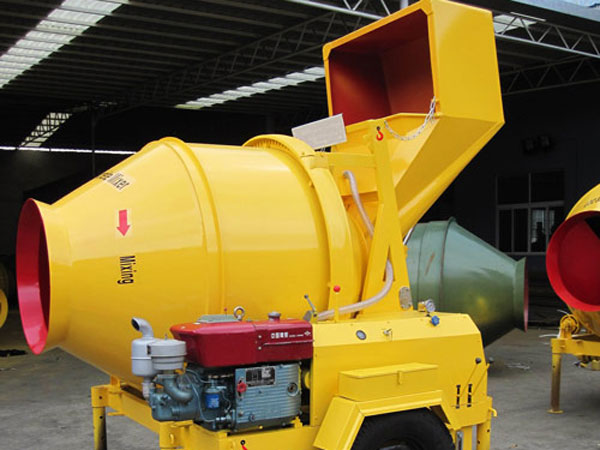

Model	JZR350A	JZR350B	JZR500
Discharging Capacity(L)	350	350	500
Charging Capacity(L)	560	560	800
Productivity(m3/h)	10 -14	10- 14	20-22
Maximum Size of Aggregate(mm)	60	60	80
Hopper Lifting	Wire rope lifting	Hydraulic system	Hydraulic system
Diesel Engine Power(kw)	9.7	13.2	13.2
Power of Water Pump(kw)	0.75	0.75	2.2-3
Dimensions in Container (mm)	2750×2200×2400	2300×1900×2500	2300×3300×2500
Overall Weight (kg)	1350	1400	2300

How Much is AIMIX Small Concrete Mixer Price

The commonly used small concrete mixers mainly include 350L and 500L output. These concrete mixers are low in price and have a wide range of applications. The price ranges from 10,000 to 30,000. Customers can choose the appropriate type of mixing equipment according to their actual construction needs. AIMIX Construction Machinery welcomes all customers to visit and inspect.

Equipment Model	AS-1.8	AS-2.6 m3	AS-3.5 Type A	AS-3.5 Type B	AS-3.5 Type C	AS-3.5 Type D	AS-4.0	AS-5.5	AS-6.5
Engine Model	Yuchai 4102 Turbo-Charged	Yuchai 4102 Turbo-Charged	YUCHAI 4105 Turbo-Charged	YUCHAI 4105 Turbo-Charged	YUCHAI 4105 Turbo-charged	YUCHAI 4105 Turbo-Charged	YCD4J22G	FAW XICHAI 6110 Turbo-Charged	Weichai deutz 6105 Turbo-Charged
Rated Power	78kw	78kw	85kw	85kw	85kw	85kw	85kw	110kw	92kw
Oil Tank	16 Liters	16 Liters	16 Liters	16 Liters	16 Liters	16 Liters	16 Liters	16 Liters	16 Liters
Reducer	HJ80-43	HJ80-43	HJ80-43	HJ80-43	HJ80-43	HJ80-43	KY07-5-J	HJ80-43	KY07-5-J
Hydraulic Pump	CBGQ 2050/2032	CBGQ 2050/2032	CBGQ 2040/2080	CBGQ 2040/2080	GBGQ 2050/2032	GBGQ 2040/2080	Interpump	CBGQ 2050/2032	Interpump
Hydraulic Motor	BM5-160	BM5-160	BM5-160	USA SUNNY 56	BM 5-160	USA SUNNY 56	HAA2FM56/61W-VTD527	USA SUNNY 56	SUNNY63
Overall Dimensions(L*W*H)	7300*2650*3750	7860*2750*4100	7830*2680*4170	7730*2700*4180	7600*2800*4180	7590*2600*4270	7640*2870*4750	8450*3100*4580	8450*3050*4830
Wheelbase (mm)	2600	2800	2900	2650	2640	2687	2480	3350	2850
Drum Rotate	180º	270º	270º	270º	270º	270º	270º	270º	270º
Max.Speed (Km/h)	30	30	30	30	30	30	35	30º	40

Advantages of AIMIX Small Concrete Mixer

AIMIX small concrete mixers have the features of high production efficiency, good mixing quality, simple operation, light weight, high degree of automation, convenient operation, convenient movement, high production efficiency, high-quality mixing, advanced performance, easy operation and maintenance.

AIMIX Small Concrete Mixer Exported

Tips for Using A Small Concrete Mixer

1. The mixer should be installed on a solid and level ground .
2. Regularly check the machine systems according to the procedures of cleaning, tightening, lubrication, adjustment, and corrosion protection, and make them meet the requirements; Potential safety hazards must be eliminated in time.
3. During the operation of the mixer, do not let sand and gravel fall into the running part of the machine, otherwise, the parts will be easily jammed and damaged.
4. After the feed hopper is raised, no one can pass or stay under the hopper. It is not allowed to stop before discharging. The feed volume cannot exceed the specified capacity.
5. After the mixing work is over, the mixer should be cleaned in time to prevent the concrete from agglomerating. When cleaning, protect electrical equipment from moisture. Cleaning work must be done after the power is off to prevent electric shock.

How to Choose a Small Concrete Mixer

Selection criteria for small concrete mixers:
1.Choose according to the user’s own total project volume and project duration.
2.According to the actual needs of the construction of your own work project, the choice is judged according to the composition and viscosity of the actual concrete mixture.
3.It can be selected according to the concrete type of user’s own project.

Generally speaking, when choosing a small concrete mixer, you must first determine the type of concrete mixer base on the size of the production scale, the size of the construction site, the situation of the attached equipment, and the technical performance of the equipment. The most suitable product not only ensures the project quality, but also affects the investment of the entire project. Secondly, we must get a good knowledge of the reputation of the supplier, and compare the price, performance, quality, service, etc. of similar products through various channels, then select the most satisfactory products.

Where to Buy a Better Small Concrete Mixer Machine

AIMIX construction machinery is a household name and has won praise and recognition from customers all over the world. From our cases, you can see how many construction equipment we have exported. By now, our construction machinery has been exported to more than 100 countries in the world.
To serve customers faster and better, besides office and factory in China, we also set branch office and oversea warehouse in other countries. We set branch offices in countries such as Indonesia, Pakistan, Philippines, Malaysia, Uzbekistan etc. We also have a professional after-sale team to solve customer’s worries. All the things we do is to make sure provide high-quality products and services for customers.

From our customers’ review, you can see that our products are very popular, and our after-sales service is also very good and fast. After customers purchase our products, our after-sale team will call and pay a visit to ensure the equipment is performing well. Customers speak highly of our products and service. If you are interested in our small concrete mixer for sale, don’t hesitate to contact us now!
